Square D

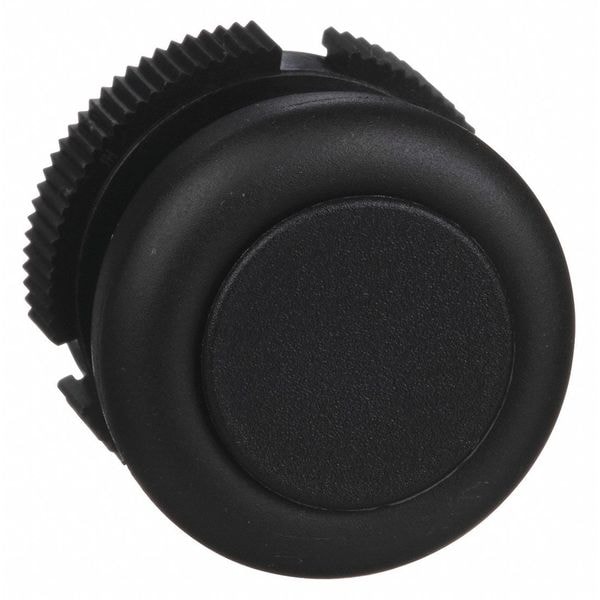

Pendant Pushbutton, Black

original price: $7.65
4% off
new price: $7.29
/ea
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type of Operator Flush Button
  • Color Black
  • Number of Operators 1
  • NEMA Rating 4, 4X, 5
  • Size 22 mm
See all product information

Product Information

Dimensions

Size 22 mm
Manufacturer Warranty Length 18 mo
Panel Cutout Diameter 22 mm

Details

Item Pendant Push Button
Type of Operator Flush Button
Color Black
Number of Operators 1
NEMA Rating 4, 4X, 5
For Use With XAC Series Pendant Control Stations
Standards CSA C22.2 No.14, EN/IEC 60204-32, EN/IEC 60947-5-1, REACH, RoHS, UL 508
Head Material Plastic
Mechanical Interlock No
Includes Booted Single Black Button
IP Rating IP65
Operator Color black
Overvoltage Category Class II IEC 61140
Product Compatibility XACA..
Mounting Location Front of enclosure
Ambient Air Temperature For Storage -40 to 158°F (-40 to 70°C)
Shock Resistance 100 gn IEC 60068-2-27
Ambient Air Temperature For Operation -13 to 158°F (-25 to 70°C)
Product Or Component Type Head for push-button
Vibration Resistance 15 gn 10 to 500 Hz)IEC 60068-2-6
Marking Unmarked
Component Name XACA
IP Degree Of Protection IP65 conforming to IEC 60529
IK Degree Of Protection IK08 IEC 62262
Compatible with Series XAC, XACA, XB5, ZB5
Head Style Extended
NEMA Enclosure Rating 4, 4X, 5
Head Color Black

Description

Pendant Push Button, Color Black, For Use With XAC Series Pendant Control Stations, Size 22 mm, Head Material Plastic, NEMA Rating 4, 4X, 5, IP Rating IP65, Legend Not Applicable, Standards CSA C22.2 No.14, EN/IEC 60204-32, EN/IEC 60947-5-1, REACH, RoHS, UL 508, Includes Booted Single Black Button
