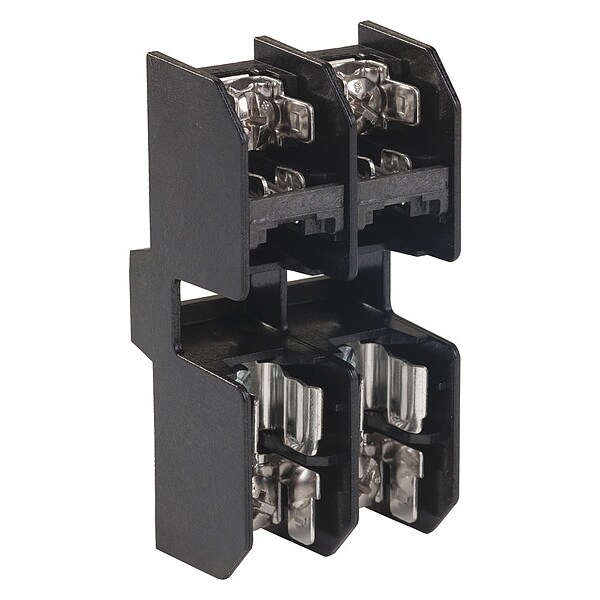

Power Distribution Block 2 Pole, 30 A, 600 V, 10 AWG
Mfr # 9080FB2611CC
Zoro # G0576226
product price:Â $37.99
/eaKey Features
Connection Type
Screw Clamp
Maximum Voltage
600 V
Number of Poles
2
Current
30 A
For Minimum Wire Size
14 AWG
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9080FB2611CC
- Zoro #
- G0576226
- UPC #
- 785901097204
- Country of Origin
- Korea, Republic of
Dimensions
- For Minimum Wire Size
- 14 AWG
- For Maximum Wire Size
- 10 AWG
- Fuse Size
- 0.4063 x 1.5 in
- Overall Width
- 1.6 in
- Overall Depth
- 1.29 in
- Overall Length
- 3.13 in
Details
- Item
- Power Distribution Block
- Connection Type
- Screw Clamp
- Maximum Voltage
- 600 V
- Number of Poles
- 2
- Current
- 30 A
- Housing Material
- Thermoplastic
- Maximum Operating Temperature
- 257 Degrees F
- Standards
- CSA file 70360 class 6225 01 || CE || UL recognized E40747 CCN IZLT2
- Fuse Type
- CC
- Electrical Connection
- pressure wire clamp
- Ambient Air Temperature For Operation
- -40-257°F
- [Ics] Rated Service Breaking Capacity
- 200 kA UL 512
- [Ue] Rated Operational Voltage
- <= 600 V AC/DC
- Terminal Tightening Torque
- screw terminals 25 lbf.in (2.82 N.m) AWG 14 to AWG 10 copper
Description
Terminal Block Fuseholder 600V 30A
