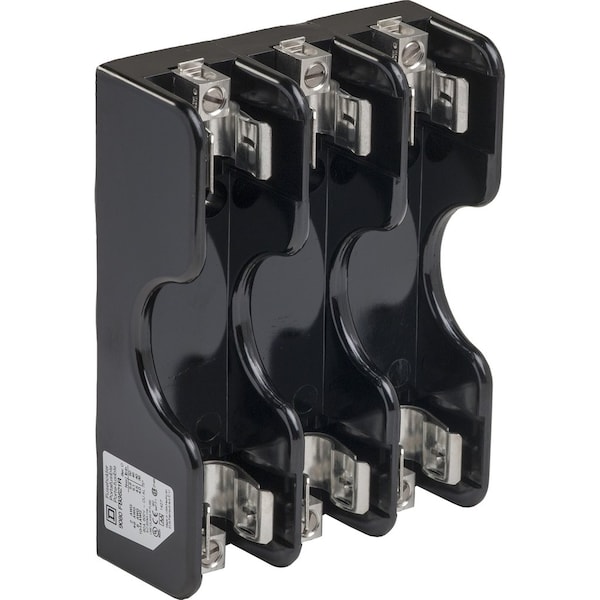

Power Distribution Block, 3 Pole, 60 A, 600 V, 2 AWG
Mfr # 9080FB3621R
Zoro # G0852988
product price: $99.89
/ea
Free Shipping & Returns
Key Features
Connection Type
Box Lug
Number of Poles
3
Current
60 A
Maximum Voltage
600 V
For Minimum Wire Size
14 AWG
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
9080FB3621R
Zoro #
G0852988
UPC #
785901097259
Country of Origin
United States
Dimensions
For Minimum Wire Size
14 AWG
For Maximum Wire Size
2 AWG
Overall Width
5.08 in
Overall Length
6.75 in
Fuse Size
1.0625 x 5.5 in
Wire Stripping Length
0.5625 in
Overall Depth
2.12 in
Details
Item
Power Distribution Block
Connection Type
Box Lug
Number of Poles
3
Current
60 A
Maximum Voltage
600 V
Standards
UL listed file E40747 CCN IZLT || CE || CSA file 70360 class 6225 01
Material
phenolic block
Block Material
Phenolic: block
[Ue] Rated Operational Voltage
<= 600 V AC/DC
Ambient Air Temperature For Operation
-40-302°F
Fuse Type
R
[Ics] Rated Service Breaking Capacity
200 kA UL 512
Electrical Connection
box lugs
Operating Temperature
-40 to 302°F (-40 to 150°C)
Terminal Tightening Torque
lugs 50 lbf.in (5.65 N.m) AWG 3 to AWG 2 copper or aluminium; lugs 45 lbf.in (5.08 N.m) AWG 6 to AWG 4 copper or aluminium; lugs 40 lbf.in (4.52 N.m) AWG 8 copper or aluminium; lugs 35 lbf.in (3.95 N.m) AWG 12 to AWG10 copper or aluminium; lugs 35 lbf.in (3.95 N.m) AWG 14 copper
Description
Terminal Block Fuseholder 600V 60A
