Shop SQUARE D

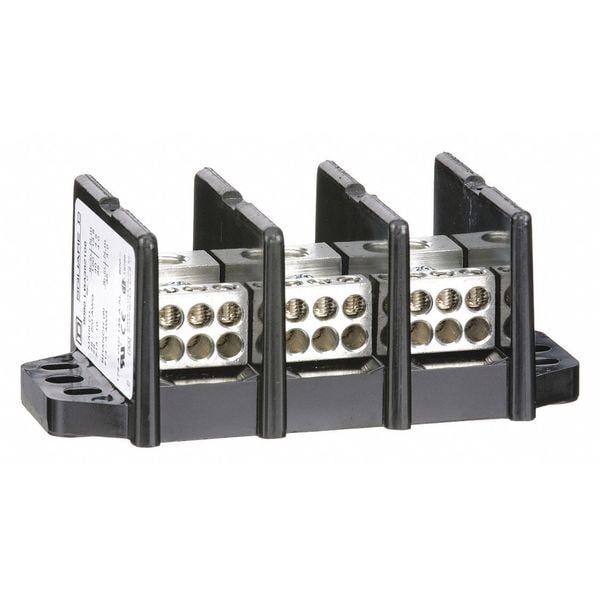

Power Distribution Block, Open, 3 Pole, 175 A Copper, 600 V AC/DC, Surface Mount

  • Mfr # 9080LBA362106

  • Zoro # G3547214

CAD Available
product price:  $138.99
/ea
Free Shipping & Returns

Key Features

CAD Drawing
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
175 A
Maximum Current - Aluminum Conductor
135 A
Maximum Voltage
600 V AC/DC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
9080LBA362106
Zoro #
G3547214
UPC #
785901132615
Country of Origin
Korea, Republic of

Dimensions

Depth
2.06 in
Width
2.9 in
Length
5.37 in
Overall Width
5.38 in
For Load Copper Wire Size - Minimum
14 AWG
For Line Copper Wire Size - Maximum
2/0 AWG
Overall Depth
2.06 in
For Load Aluminum Wire Size - Minimum
14 AWG
For Line Copper Wire Size - Minimum
14 AWG
Overall Length
2.9 in
For Load Aluminum Wire Size - Maximum
4 AWG
For Line Aluminum Wire Size - Maximum
2/0 AWG
For Load Copper Wire Size - Maximum
4 AWG
For Line Aluminum Wire Size - Minimum
14 AWG
Wire Strip Length
Load 0.38 in top; Load 0.75 in bottom; Line 0.69 in

Details

Item
Power Distribution Block
Power Distribution Block Design
Open
For Conductor Material
Aluminum, Copper
Maximum Current - Copper Conductor
175 A
Maximum Current - Aluminum Conductor
135 A
Maximum Voltage
600 V AC/DC
Number of Poles
3
Line Connections/Pole
1
Load Connections/Pole
6
Line Side Connection Type
Lug
Load Side Connection Type
Lug
Terminal Material
Aluminum
Housing Material
Phenolic
Maximum Operating Temperature
302 Degrees F
Mounting Type
Surface Mount
Standards
CE Marked, CSA File 70361 Class 6228-1, RoHS Compliant, UL File E60616 Guide XCFR2
Special Features
18 Months Warranty, Surface Mount
Number of Circuits
3
Minimum Operating Temperature
-40 Degrees F
Weight
0.35 kg
Features
Mercury Free
Short Circuit Current Rating
65 kA
CAD Available
Yes
UL 94 Flammability Rating
V-0
Primary Wire Range
14 to 2/0 AWG
Secondary Wire Range
10 to 4 AWG

Description

Power Distribution Block, For Conductor Material Aluminum, Copper, Line Connections/Pole 1, Line Side Stud Size Not Applicable, For Line Copper Wire Size - Minimum 14 AWG, For Line Copper Wire Size - Maximum 2/0 AWG, Load Connections/Pole 6, Load Side Stud Size Not Applicable, For Load Copper Wire Size - Minimum 14 AWG, For Load Copper Wire Size - Maximum 4 AWG, Maximum Current - Copper Conductor 175 A, Maximum Voltage 600 V, Mounting Type Surface, Number of Poles 3, Overall Depth 2.06 in
