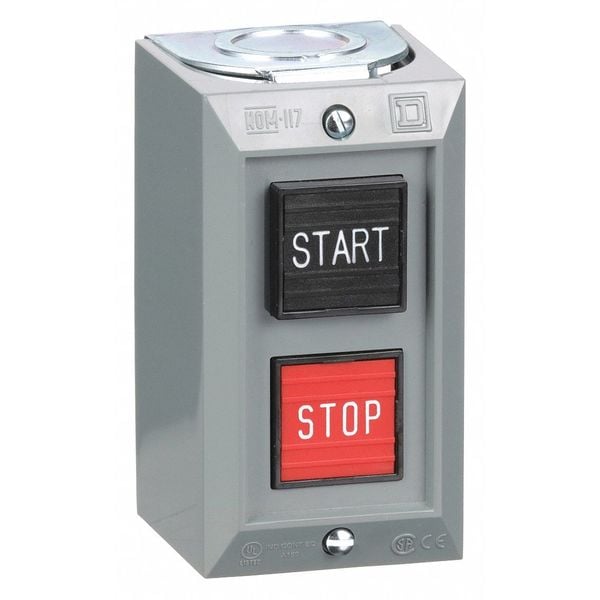

Square D Push Bttn Cntrl Statn, 1NO/1NC, Start/Stop 9001BG215 - main

Push Bttn Cntrl Statn, 1NO/1NC, Start/Stop

  • Mfr # 9001BG215

  • Zoro # G1494306

product price:  $116.99
/ea
Free Shipping & Returns

Key Features

Number of Gangs
1
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Push Button/Push Button
Contact Form
2NO
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9001BG215
Zoro #
G1494306
UPC #
785901390268
Country of Origin
Mexico

Dimensions

Size
30 mm
Overall Depth
2.34 in
Overall Width
2.06 in
Hub Size - Maximum
3/4 in
Overall Height
5 in
Manufacturer Warranty Length
18 mo

Details

Item
Control Station
Number of Gangs
1
Legend
Start/Stop
Number of Pilot Lights
0
Type of Operator
Push Button/Push Button
Contact Form
2NO
Number of Operators
2
NEMA Rating
1
Hub Style
Feed-Thru
Series
9001
Contact Rating
5A @ 600V AC/24V DC
Standards
CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
For Use With
indoor
Action
Maintained/Maintained
Mechanical Interlock
Yes
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Enclosure Material
Plastic
IP Rating
IP20
Mounting
Wall
Enclosure Color
Gray
Operator Color
(2) Black
Number of Speeds
1
Mounting Style
Surface
Terminal Connection
screw clamp terminal
Contact Operation
Interlocked
Environmental Characteristic
Standard environment
Product Certifications
UL listed file E42259 CCN NKCR; CSA LR25490 class 3211 03; CE
Control Station Composition
2 push-buttons START-STOP
Product Or Component Type
Complete control station
Rated Operational Current
5 A 600 V
Device Mounting
Surface
Contact Type and Composition
2 NO
NEMA Degree Of Protection
NEMA 1
AC Contact Rating
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V
Includes Mechanical Interlock
Mechanical Interlock Included
Product Type
Control Station
Operating Temperature - Maximum
158 Degrees F
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-13 Degrees F
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V
NEMA Enclosure Rating
1
Operator Configuration
(2) Push Buttons

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Start/Stop, Type of Operator Push Button/Push Button, Action Maintained/Maintained, Operator Color (2) Black, Contact Form 2NO, Mechanical Interlock Yes, NEMA Rating 1, Contact Rating 5A @ 600V AC/24V DC, IP Rating IP20, Mounting Wall, Enclosure Material Plastic, Enclosure Color Gray, Standards CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
