This item is Discontinued.

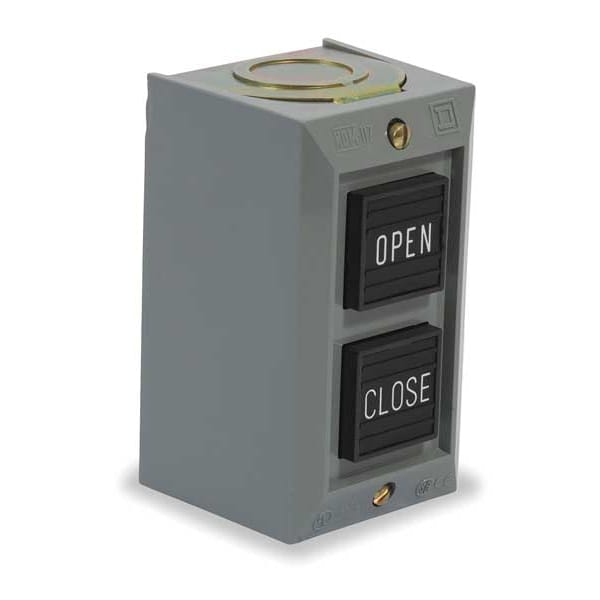

Square D Push Buttn Contrl Station, 2NO, Open/Close 9001BG207

Push Buttn Contrl Station, 2NO, Open/Close (Discontinued)

  • Mfr # 9001BG207
  • Zoro # G0436694
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9001BG207
Zoro #
G0436694
UPC #
785901856665
Country of Origin
Mexico

Dimensions

Size
30 mm
Height
2.19 in
Depth
3.69 in
Width
2.06 in
Manufacturer Warranty Length
18 mo
Overall Depth
2.34 in
Overall Height
5 in
Overall Width
2.06 in

Details

Item
Control Station
Contact Form
2NO
Number of Gangs
1
Legend
Open/Close
Type of Operator
Push Button/Push Button
Number of Pilot Lights
0
Number of Operators
2
NEMA Rating
1
Series
9001
Hub Style
Feed-Thru
Standards
CE, CSA LR25490 Class 3211 03, UL E42259 CCN NKCR
Contact Rating
5A @ 600V AC/24V DC
For Use With
indoor
Action
Momentary/Momentary
Mechanical Interlock
No
Hub
1/2 in to 3/4 in NPT
Enclosure Material
Plastic
Green Environmental Attribute
RoHS 2011/65/EU Compliant
Mounting
Wall
Enclosure Color
Gray
NEMA Contact Rating Designation
B600/P600
IP Rating
IP20
Number of Speeds
1
Operator Color
(2) Black
Terminal Connection
screw clamp terminal
Mounting Style
Surface
NEMA Degree Of Protection
NEMA 1
Control Station Composition
2 push-buttons OPEN-CLOSE
Contact Type and Composition
2 NO
Rated Operational Current
5 A 600 V
Product Or Component Type
Complete control station
Device Mounting
Surface
Product Certifications
CSA LR25490 class 3211 03; CE; UL listed file E42259 CCN NKCR
Environmental Characteristic
Standard environment
Operating Temperature - Maximum
158 Degrees F
Product Type
Control Station
Includes Mechanical Interlock
No Mechanical Interlock Included.
Operator Configuration
(2) Push Buttons
Hazardous Location Specification
Not Rated
Operating Temperature - Minimum
-13 Degrees F
AC Contact Rating
0.6 A @ 600 V, 0.75 A @ 480 V, 1.5 A @ 240 V, 3.75 A @ 120 V
NEMA Enclosure Rating
1
DC Contact Rating
0.2 A @ 600 V, 0.55 A @ 240 V, 1.1 A @ 120 V

Description

Control Station, Number of Operators 2, Number of Pilot Lights 0, Size 30 mm, Legend Open/Close, Type of Operator Push Button/Push Button, Action Momentary/Momentary, Operator Color (2) Black, Contact Form 2NO, Mechanical Interlock No, NEMA Rating 1, Contact Rating 5A @ 600V AC/24V DC, NEMA Contact Rating Designation B600/P600, IP Rating IP20, Mounting Wall, Hub 1/2 in to 3/4 in NPT, Height 2.19 in, Width 2.06 in, Depth 3.69 in, Enclosure Material Plastic, Enclosure Color Gray
