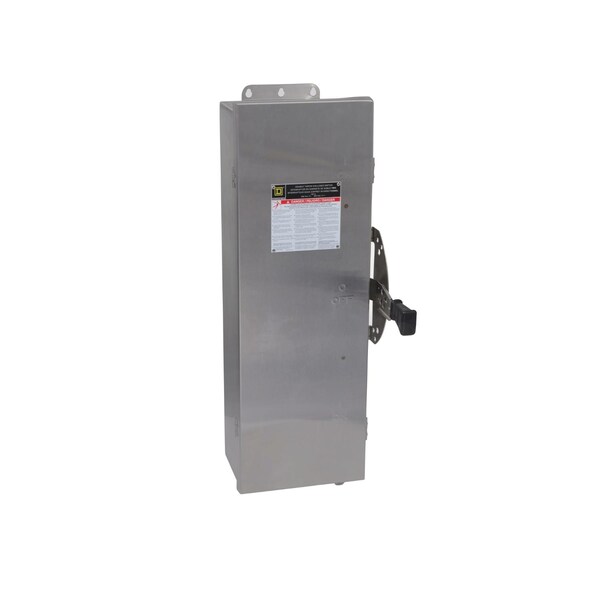

Safety Switch, Fusible, Three Phase, NEMA 4, 4X, 5
Mfr # DTU363DS
Zoro # G3996322
product price:Â
$
9,585.99
/ea
Free Shipping & Returns
Key Features
Protection Method
Nonfusible
Contact Form
3PDT
Current Rating
100 A
Phase
Three
Enclosure Type
NEMA 4, 4X, 5
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DTU363DS
- Zoro #
- G3996322
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Width
- 11.5 in
- Depth
- 7.12 in
- Height
- 30.26 in
Details
- Item
- Safety Switch
- Protection Method
- Nonfusible
- Contact Form
- 3PDT
- Current Rating
- 100 A
- Phase
- Three
- Enclosure Type
- NEMA 4, 4X, 5
- Voltage
- 600 V
- Housing Material
- 18-8 Stainless Steel
- Standards
- UL Listed
- Tightening Torque
- 35-35 lbf.in 2.06-5.26 mm² (AWG 14 to AWG 1/0) || 40-40 lbf.in 8.37-8.37 mm² (AWG 8) || 45-45 lbf.in 13.30-53.48 mm² (AWG 8) || 50-50 lbf.in 26.67-53.48 mm² (AWG 6 to AWG 4)
- Product Certifications
- UL Listed
- Number Of Poles
- 3
- Disconnector Device Type
- non-fusible disconnect switch
- Product Or Component Type
- Double Throw Safety Switch
- Device Mounting
- surface
- Short-Circuit Current
- 10 kA H or K || 200 kA R, J or T
- Line Rated Current
- 100 A
- Series Name
- heavy duty
- Awg Gauge
- AWG 12 to AWG 1/0 aluminium || AWG 14 to AWG 1/0 copper
- Device Composition
- none
Description
SW NOT FUSIBLE 600V 100A 3P NEMA4 4X 5
