  11. Surge Protection Device, 1 Phase, 120/240V AC, 3 Wires, 240 kA

This item is Discontinued.

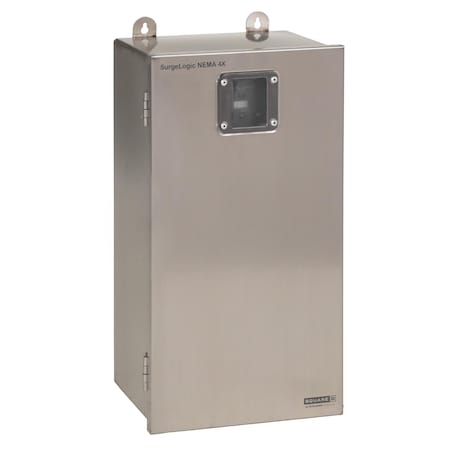

Square D Surge Protection Device, 1 Phase, 120/240V AC, 3 Wires, 240 kA SSP01EMA24S

Surge Protection Device, 1 Phase, 120/240V AC, 3 Wires, 240 kA (Discontinued)

  • Mfr # SSP01EMA24S
  • Zoro # G000904961
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SSP01EMA24S
Zoro #
G000904961
UPC #
-
Country of Origin
Mexico

Dimensions

Length
483 mm
Depth
238.8 mm
Width
297.2 mm
Cable Length
483 mm

Details

Item
Surge Protection Device
Mounting Style
Surface
Phase
1
Voltage
120/240V AC
Number of Wires
3 Wires
Max. Surge Current per Mode
240 kA
Max. Surge Current per Phase
240 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Max. Continuing Operating Voltage
150V
Enclosure NEMA Rating
NEMA 4X
Enclosure Material
Stainless Steel
Standards
CSA C22.2 No 8, UL 1449:ed. 4, UL 1283:ed. 5
Range of Product
Surgelogic
Device Short Name
EMA
Provided Equipment
alarm enable/disable switch, surge counter, dry contacts
Local Signalling
status LED green per phase normal operation, status LED red per phase fault
Ambient Air Temperature For Operation
65-65°C
[Uc] Maximum Continuous Operating Voltage
150 V
Surge Current
240 kA
Connections - Terminals
lugs AWG 10...AWG 2 copper 4 N.m
Device Mounting
surface
Ambient Operating Temperature
149°F (65°C)
Connection
Lugs AWG 10 to AWG 2 copper 35.40 lbf.in (4 N.m)

Description

Surge Protect - EMA - 240kA - 120/240VAC
