Square D

Surge Protection Device, 1 Phase, 120/240V

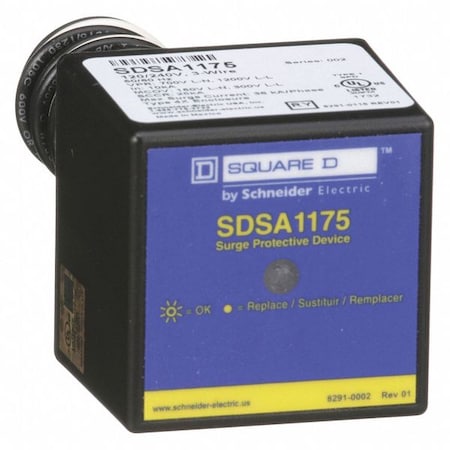

Square D Surge Protection Device, 1 Phase, 120/240V SDSA1175
Hover or click to zoom Tap to zoom
$41.99
  • Item: Surge Protection Device
  • Phase: Single
  • Voltage: 120/240V AC
See full product details
Orders over $75 ship free.

Total: $41.99

Square D #SDSA1175 Specifications

  • Item: Surge Protection Device
  • Phase: Single
  • Voltage: 120/240V AC
  • Max. Continuing Operating Voltage: 150V AC
  • Voltage Protection Rating: 1200V (L-L), 700V (L-N)
  • Nominal Discharge Current: 10 kA
  • Modes of Protection: L-L, L-N
  • Filtering / Nonfiltering: Nonfiltering
  • Modular / Nonmodular: Nonmodular
  • Joules: 1,304
  • Number of Wires: 3 Wires
  • Standards: CSA C22.2 No 8, NEC 285 Type I, UL 1449:ed. 4 Type I
  • Width: 2.25 in
  • Length: 2.5 in
  • Short Circuit Current Rating: 25kA
  • Depth: 2.7 in
  • Includes: LED Status Indicator
  • Max. Surge Current Per Phase: 36kA
  • Enclosure Material: Plastic
  • Mounting Style: Chase Nipple
  • Enclosure NEMA Rating: 4X
  • Wire Gauge: 14 AWG
  • Max. Surge Current Per Mode: 36kA
  • Number of Poles: 2
  • Max. Surge Current per Phase: 36 kA
  • Max. Surge Current per Mode: 36kA
  • Modular: No
  • Filtering: No
  • Max. Operating Temp.: 149 Degrees F
  • System Connection: Parallel
  • Amps: 36 A
  • Color: Black
  • UL SPD Type: Type 1
  • Basic Material: Nonmetallic
  • Length (Straight Wireway): 2.5 in
  • Country of Origin (subject to change): Mexico

Description

Surge Protection Device, Voltage 120/240V AC, Phase Single, Voltage Protection Rating 1200V (L-L), 700V (L-N), Max. Continuing Operating Voltage 150 V AC, Nominal Discharge Current 10 kA, Modes of Protection L-L, L-N, Mounting Location Externally Mounted, Filtering No, Modular No, Amps 36 A, Color Black, Mounting Style Chase Nipple, Enclosure NEMA Rating 4X, Number of Poles 2, Basic Material Nonmetallic, Number of Wires 3 Wires, System Connection Parallel, Max. Surge Current per Phase 36 kA
