  11. Surge Protection Device, 3 Phase, 120/208V AC, 4 Wires, 160 kA

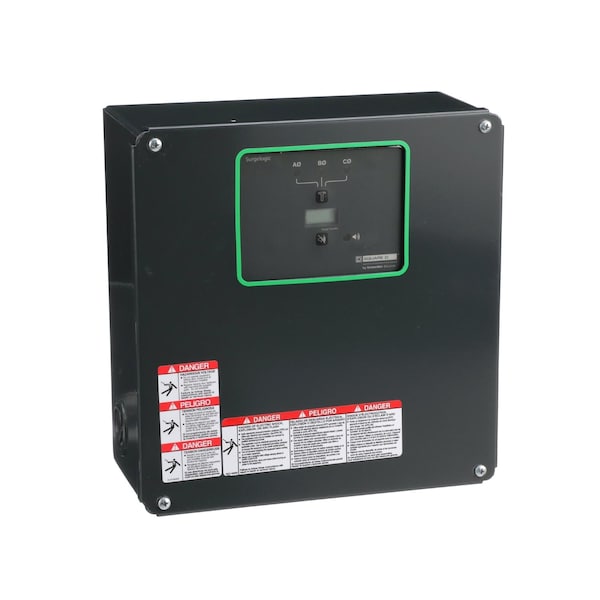

Square D Surge Protection Device, 3 Phase, 120/208V AC, 4 Wires, 160 kA SSP02EMA16 - main

Surge Protection Device, 3 Phase, 120/208V AC, 4 Wires, 160 kA

  • Mfr # SSP02EMA16

  • Zoro # G4592372

product price: $3,933.22
/ea
Free Shipping & Returns

Key Features

Mounting Style
Surface
Phase
3
Voltage
120/208V AC
Number of Wires
4 Wires
Max. Surge Current per Mode
160 kA
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SSP02EMA16
Zoro #
G4592372
UPC #
785901781653
Country of Origin
Mexico

Dimensions

Length
282 mm
Depth
135 mm
Width
253.5 mm
Cable Length
483 mm

Details

Item
Surge Protection Device
Mounting Style
Surface
Phase
3
Voltage
120/208V AC
Number of Wires
4 Wires
Max. Surge Current per Mode
160 kA
Max. Surge Current per Phase
160 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Max. Continuing Operating Voltage
150V
Enclosure NEMA Rating
NEMA 1
Enclosure Material
Steel
Standards
CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
Local Signalling
status LED green per phase normal operation || status LED red per phase fault
Device Mounting
surface
Ambient Air Temperature For Operation
65-65 °C
Connections - Terminals
lugs AWG 10...AWG 2 copper 4 N.m
Device Short Name
EMA
[Uc] Maximum Continuous Operating Voltage
150 V
Provided Equipment
alarm enable/disable switch || surge counter || dry contacts
Surge Current
160 kA
Range of Product
Surgelogic
Modular
No
Includes
alarm enable/disable switch, surge counter, dry contacts
Filtering
Yes
Wire Gauge
AWG 10...AWG 2

Description

Surge Protect - EMA - 160kA - 208Y/120VA
