  11. Surge Protection Device, 3 Phase, 277/480V AC, 4 Wires, 160 kA
This item is Discontinued.

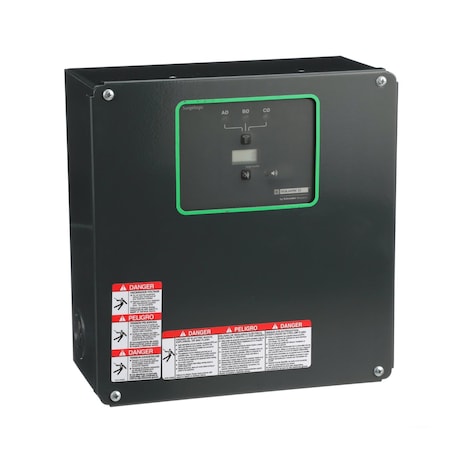

Square D Surge Protection Device, 3 Phase, 277/480V AC, 4 Wires, 160 kA SSP04EMA16

Surge Protection Device, 3 Phase, 277/480V AC, 4 Wires, 160 kA (Discontinued)

  • Mfr # SSP04EMA16
  • Zoro # G4591882
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SSP04EMA16
Zoro #
G4591882
UPC #
-
Country of Origin
Mexico

Dimensions

Length
282 mm
Depth
135 mm
Width
253.5 mm
Cable Length
483 mm

Details

Item
Surge Protection Device
Mounting Style
Surface
Phase
3
Voltage
277/480V AC
Number of Wires
4 Wires
Max. Surge Current per Mode
160 kA
Max. Surge Current per Phase
160 kA
Nominal Discharge Current
20 kA
Short Circuit Current Rating
200kA
Max. Continuing Operating Voltage
320V
Enclosure NEMA Rating
NEMA 1
Enclosure Material
Steel
Standards
CSA C22.2 No 8 || UL 1449:ed. 4 || UL 1283:ed. 5
Device Mounting
surface
Provided Equipment
alarm enable/disable switch || surge counter || dry contacts
Local Signalling
status LED green per phase normal operation || status LED red per phase fault
[Uc] Maximum Continuous Operating Voltage
320 V
Ambient Air Temperature For Operation
65-65 °C
Device Short Name
EMA
Surge Current
160 kA
Connections - Terminals
lugs AWG 10...AWG 2 copper 4 N.m
Range of Product
Surgelogic

Description

Surge Protect - EMA - 160kA - 480Y/277VA
