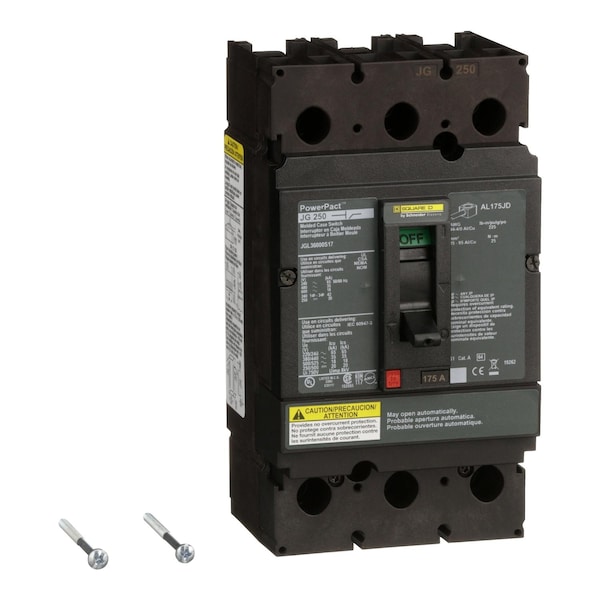

Switch, 600V AC, 175A, 3 Poles
Mfr # JGL36000S17
Zoro # G4061608
product price:Â
$
1,627.99
/ea
Free Shipping & Returns
Key Features
Voltage
600V AC
Amps
175 A
Number of Poles
3
Max. Wire Size
AWG 4/0 aluminium/copper)
Min. Wire Size
AWG 4
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- JGL36000S17
- Zoro #
- G4061608
- UPC #
- -
- Country of Origin
- United States
Dimensions
- Max. Wire Size
- AWG 4/0 aluminium/copper)
- Min. Wire Size
- AWG 4
- Height
- 7.52 in
- Width
- 2.74 in
- Depth
- 5 in
Details
- Item
- Switch
- Voltage
- 600V AC
- Amps
- 175 A
- Number of Poles
- 3
- Series
- J-frame
- Line Rated Current
- 175 A
- Terminal Identifier
- AL175JD
- Product Or Component Type
- automatic switch
- Awg Gauge
- AWG 4...AWG 4/0 aluminium/copper)
- Magnetic Tripping Current
- 3125-3125 A
- [Ue] Rated Operational Voltage
- 600 V AC
- Electrical Connection
- lugs line || lugs load
- Breaking Capacity Code
- G
- Tightening Torque
- 26-26 N.m 25-95 mm2² (AWG 4...AWG 4/0)
- Product Certifications
- CSA || UL Listed || IEC
- Short-Circuit Withstand
- 65 kA 240 V UL 489 || 35 kA 480 V UL 489 || 18 kA 600 V UL 489
- Trip Unit Technology
- magnetic
- Mounting Mode
- unit mount
Description
POWERPACT AUTOMATIC MOULDED CASE SWITCH
