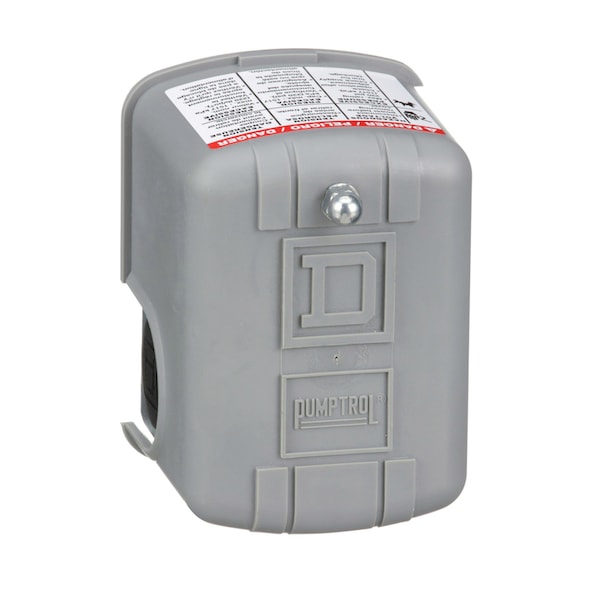

Telemecanique Pumptrol 95 psi 125 psi Pressure Switch
Mfr # FHG12J52XCP
Zoro # G7792404
Specifications
Product Information
Description
This Square D pumptrol FHG12J52XBP air-compressor pressure switch is the most trusted brand in residential, commercial and industrial air compressor applications. For over 75 years, Square D pressure switches continue to meet the needs of our customers. The FHG12J52XCP controls an electrically driven air compressor in a power circuit when the adjustable threshold upon falling is reached and is set to turn off at 125 PSI. The switch has a 1/4 inch NPSF internal fluid connection and is suitable for use with a lower-horsepower motor with 1.5 HP or less. The non-adjustable differential is 30 PSI and the adjustable cut-out range is 70 PSI to 150 PSI. The switch is diaphragm actuated and has a fixed differential. The threshold or setting point, upon rising adjusts with a screw nut. The switch has screw terminal electrical connections and two 2-pole NC contacts open on rising pressure.
- • Suitable for control of small electrically driven air compressors
- • Standard-action contacts open on rising pressure
- • For use with air only, fixed differential turns off at 125 PSI
- • Universally accepted and recognized design is easy to wire, features drift proof cut-in and cut-out settings and has visible vertical contacts which are easy to inspect
- • Switch is UL listed and CSA certified
- • Pressure switch is ROHS compliant
