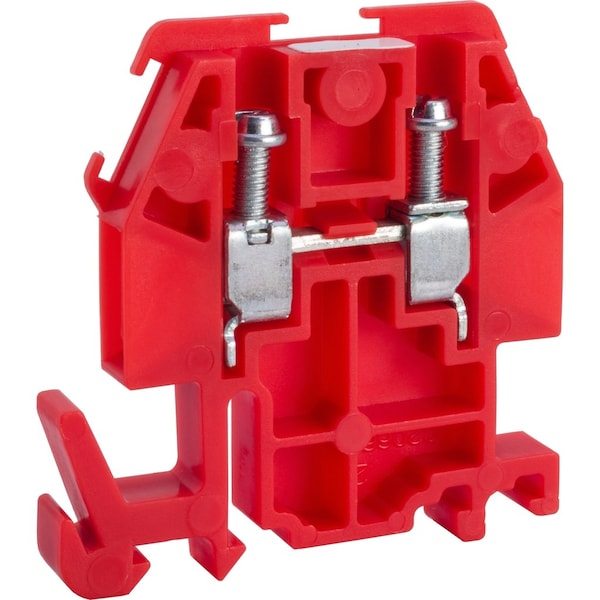

Terminal Block, Not Applicable Pole, 30 A, 600 V AC/DC, 10 AWG, Red
Mfr # 9080GMR6
Zoro # G700905534
product price:Â $2.79
/ea
Sold in multiples of 50 for $139.50
Key Features
Mounting Type
DIN
Connection Type
Box Lug
Current
30 A
Maximum Voltage
600 V AC/DC
Circuit Protection Type
None
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 9080GMR6
- Zoro #
- G700905534
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- For Minimum Wire Size
- 22 AWG
- For Maximum Wire Size
- 10 AWG
- Overall Width
- 1.72 in
- Overall Length
- 1.82 in
- Overall Depth
- 0.24 in
- Wire Rope Length
- 1.82 in
Details
- Item
- Terminal Block
- Mounting Type
- DIN
- Connection Type
- Box Lug
- Current
- 30 A
- Maximum Voltage
- 600 V AC/DC
- Circuit Protection Type
- None
- For Conductor Material
- Copper
- Housing Color
- Red
- Standards
- UL recognized E60616 CCN XCFR2CSA file 62144 class 6228 01CE
- Number Of Terminal Blocks
- 51 per foot
- Ambient Air Temperature For Operation
- -40-257°F
- Product Compatibility
- GM6B
- [Ue] Rated Operational Voltage
- 600 V AC/DC
- Localisation On Device
- standard
- Protection Type
- fingersafe DIN 57470
- Electrical Connection
- zinc plated steel box lugs
- Terminal Block Type
- Solderless Box Lug
- Number of Connections
- 2
Description
Terminal Block, Circuit Protection Type None, Connection Type Box Lug, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Housing Color Red, Maximum Voltage 600 V, Mounting Type DIN Rail, Number of Poles Not Applicable, Number of Tiers Not Applicable, For Conductor Material Copper, For Fuse Diameter Not Applicable, For Fuse Length Not Applicable, Overall Depth 0.24 in, Overall Length 1.82 in, Overall Width 1.72 in
