Vibrations6 Gn IEC 60068-2-6; Shocks15 Gn for 11 ms IEC 60068-2-7
Relay Application
Motor protection
Rated Insulation Voltage
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Ambient Air Temperature For Storage
-76 to 158°F (-60 to 70°C)
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Product Or Component Type

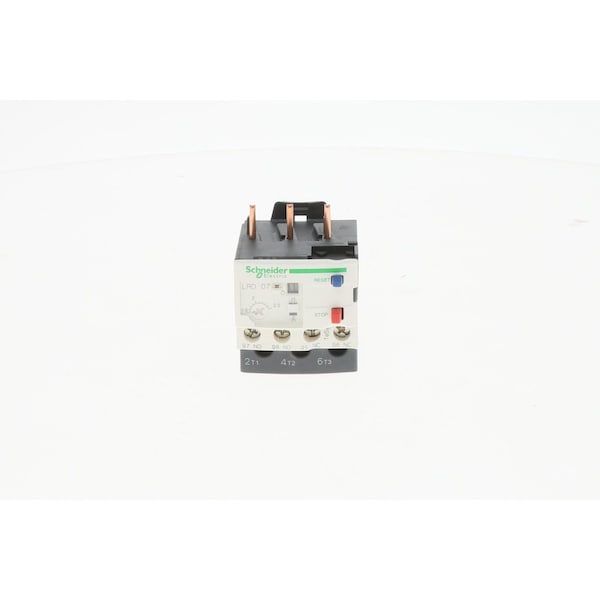

Differential thermal overload relay
Associated Fuse Rating
4 A gG for signalling circuit; 4 A BS for signalling circuit
Connections - Terminals
Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) solid without cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) solid without cable end
Ambient Air Temperature For Operation
-4 to 140°F (-20 to 60°C) without derating IEC 60947-4-1
Flame Retardance
V1 conforming to UL 94
Permissible Current
3 A 120 V AC-15 signalling circuit; 0.22 A 125 V DC-13 signalling circuit
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals; Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
