4 A gG for signalling circuit; 4 A BS for signalling circuit
Connections - Terminals
Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) solid without cable end; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) solid without cable end
Thermal Protection Adjustment Range
4 to 6 A
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Relay Application
Motor protection

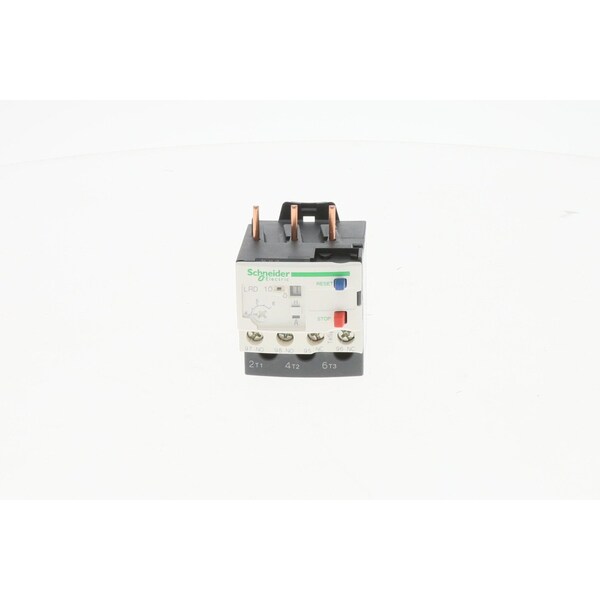

Product Name
TeSys LRD; TeSys Deca
Mechanical Robustness
Vibrations6 Gn IEC 60068-2-6; Shocks15 Gn for 11 ms IEC 60068-2-7
Thermal Overload Class
Class 10A IEC 60947-4-1
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Permissible Current
3 A 120 V AC-15 signalling circuit; 0.22 A 125 V DC-13 signalling circuit
Rated Insulation Voltage
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Climatic Withstand
IACS E10
Maximum Operating Temperature
140 Degrees F
Minimum Operating Temperature
-4 Degrees F
IP Rating
IP20
Mounting Style
Plate, with specific accessories; Rail, with specific accessories; Under contactor
