  11. Thermal Overload Relay, 1NC/1NO, 5.5 A Min current, 8 A Max current, 690V AC

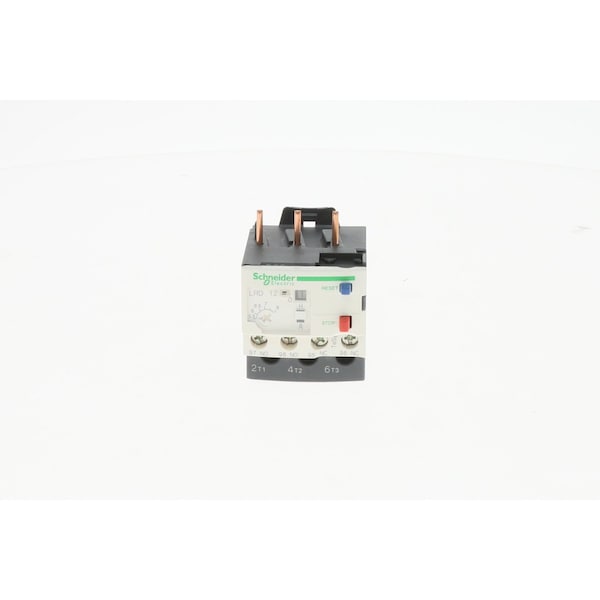

Square D Thermal Overload Relay, 1NC/1NO, 5.5 A Min current, 8 A Max current, 690V AC LRD12 - main

Thermal Overload Relay, 1NC/1NO, 5.5 A Min current, 8 A Max current, 690V AC

  • Mfr # LRD12

  • Zoro # G909981995

product price: $83.15
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
5.5 A
Maximum Overload Relay Current Setting
8:00 AM
Trip Class
10A
Overload Protection Type
Thermal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
LRD12
Zoro #
G909981995
UPC #
-
Country of Origin
Unknown

Dimensions

Height
2.6 in
Depth
2.8 in
Width
1.8 in

Details

Item
Thermal Overload Relay
Auxiliary Contact Form
1NC/1NO
Minimum Overload Relay Current Setting
5.5 A
Maximum Overload Relay Current Setting
8:00 AM
Trip Class
10A
Overload Protection Type
Thermal
Maximum Voltage Rating
690V AC
Standards
CSA,UL 489
Application
Motor protection
Flame Retardance
V1 conforming to UL 94
Ambient Air Temperature For Storage
-76 to 158°F (-60 to 70°C)
Dielectric Strength
1.89 kV 50 Hz IEC 60947-1
Product Compatibility
LC1D18; LC1D25; LC1D32; LC1D12; LC1D09; LC1D38
Ambient Air Temperature For Operation
-4 to 140°F (-20 to 60°C) without derating IEC 60947-4-1
Relay Application
Motor protection
Thermal Protection Adjustment Range
5.5 to 8 A
Product Or Component Type
Differential thermal overload relay
Product Name
TeSys LRD; TeSys Deca
Associated Fuse Rating
4 A gG for signalling circuit; 4 A BS for signalling circuit
Network Type
DC; AC
Phase Failure Sensitivity
Tripping current 130% of Ir on two phase, the last one at 0
Rated Operational Voltage
690 V AC 0 to 400 Hz power circuit IEC 60947-4-1
Product Certifications
IEC; UL; CSA; CCC; EAC; BV; RINA; DNV-GL; LROS (Lloyds register of shipping); ATEX INERIS; UKCA
Connections - Terminals
Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) flexible without cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) flexible with cable end; Control circuit screw clamp terminals 2 0.00 to 0.00 in² (1 to 2.5 mm²) solid; Power circuit screw clamp terminals 1 0.00 to 0.02 in² (1.5 to 10 mm²) flexible without cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 4 mm²) flexible with cable end; Power circuit screw clamp terminals 1 0.00 to 0.01 in² (1 to 6 mm²) solid
Conventional Free Air Thermal Current
5 A signalling circuit
Rated Impulse Withstand Voltage
6 kV
Thermal Overload Class
Class 10A IEC 60947-4-1
Tripping Threshold
1.14 +/- 0.06 Ir IEC 60947-4-1
Permissible Current
1.5 A 240 V AC-15 signalling circuit; 0.1 A 250 V DC-13 signalling circuit
Climatic Withstand
IACS E10
Network Frequency
0 to 400 Hz
Control Type
Red push-button stop; Blue push-button reset
Rated Insulation Voltage
Power circuit 600 V CSA; Power circuit 600 V UL; Power circuit 690 V IEC 60947-4-1
Tightening Torque
Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals; Power circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals
Mechanical Robustness
Vibrations6 Gn IEC 60068-2-6; Shocks15 Gn for 11 ms IEC 60068-2-7
Minimum Operating Temperature
-4 Degrees F
Maximum Operating Temperature
140 Degrees F
IP Rating
IP20
Mounting Style
Plate, with specific accessories; Rail, with specific accessories; Under contactor
Trip Clss
10

Description

TeSys LRD overload relays are designed to be used with TeSys D contactors to make a motor starter. This overload relay can be used with 9 amp through 38 amp TeSys D contactors. These differential thermal overload relays detect over currents in the lines to the motor. When an overcurrent is detected the overload relay working with the contactor will disconnect the power to the motor. This will minimize the damage to the motor windings. This overload relay has an adjustable trip current rating of 5.5 to 8 amperes. This trip current rating is calibrated per Class 10A. Multi standards certified (IEC, UL, CSA, CCC, EAC, ATEX, Marine).
