Shop SQUARE D

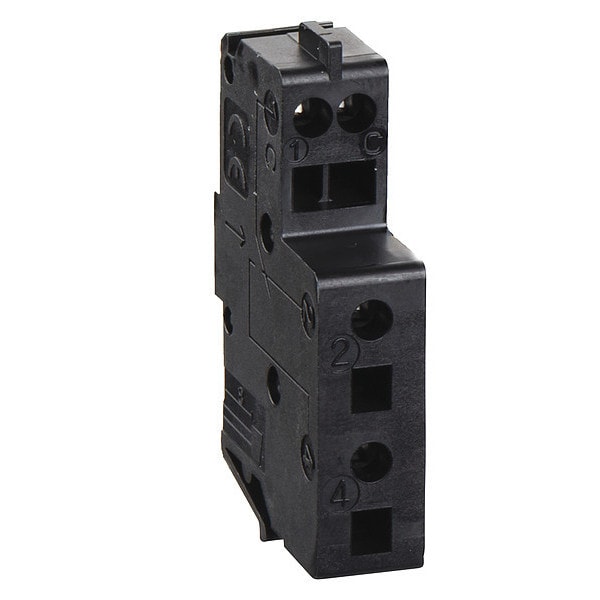

Trip Alarm and Auxiliary Switch, PowerPact(R) B Circuit Breakers Use With, 0 Poles

  • Mfr # LV426950
  • Zoro # G6545773
product price:
$
221.99
/ea
Free Shipping & Returns

Key Features

Amps
5 A
Voltage
48 to 480V AC/48 to 250V DC
Number of Poles
0
For Use With
PowerPact(R) B Circuit Breakers
Standards
CCC, EAC, IEC 60068-2-30, IEC/EN 60947-1 and -2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
LV426950
Zoro #
G6545773
UPC #
785901087830
Country of Origin
China

Dimensions

Wire Stripping Length
8 mm front

Details

Item
Trip Alarm and Auxiliary Switch
Amps
5 A
Voltage
48 to 480V AC/48 to 250V DC
Number of Poles
0
For Use With
PowerPact(R) B Circuit Breakers
Standards
CCC, EAC, IEC 60068-2-30, IEC/EN 60947-1 and -2
Frame Type
125A
Signal Contacts Composition
1 NO/NC
Minimum Load
2 mA 17 V DC
Device Application
breaker status monitoring
Device Short Name
SD || OF
Auxiliary Connection Terminal
spring
Local Signalling
for open/close ON/OFF indication || for relay trip indicator trip indicator
Auxiliary Contacts Type
standard
Product Or Component Type
auxiliary contact
Range Compatibility
PowerPact (PowerPact B) || ComPact (ComPact NSXm)
Fault Type
overload || short-circuit
[Ith] Conventional Free Air Thermal Current
0.208333333333333
[Ie] Rated Operational Current
AC-12: 5 A at 24 V AC 50/60 Hz || AC-12: 5 A at 48 V AC 50/60 Hz || AC-12: 5 A at 110...127 V AC 50/60 Hz || AC-12: 5 A at 220/240 V AC 50/60 Hz || AC-12: 5 A at 380/440 V AC 50/60 Hz || AC-12: 5 A at 660/690 V AC 50/60 Hz || AC-15: 5 A at 24 V AC 50/60 Hz || AC-15: 5 A at 48 V AC 50/60 Hz || AC-15: 4 A at 110...127 V AC 50/60 Hz || AC-15: 3 A at 220/240 V AC 50/60 Hz || AC-15: 2.5 A at 380/440 V AC 50/60 Hz || AC-15: 0.1 A at 660/690 V AC 50/60 Hz || DC-12: 5 A at 24 V DC 50/60 Hz || DC-12: 2.5 A at 48 V DC 50/60 Hz || DC-12: 0.6 A at 110 V DC 50/60 Hz || DC-12: 0.3 A at 250 V DC || DC-13: 2.5 A at 24 V DC || DC-13: 1.2 A at 48 V DC || DC-13: 0.35 A at 110 V DC || DC-13: 0.05 A at 250 V DC || DC-14: 1 A at 24 V DC || DC-14: 0.2 A at 48 V DC || DC-14: 0.05 A at 110 V DC || DC-14: 0.03 A at 250 V DC
Mounting Mode
clip-on

Description

Trip Alarm and Auxiliary Switch, For Use With PowerPact(R) B Circuit Breakers, 5 A Amps, Voltage 48 to 480V AC/48 to 250V DC, Number of Poles None, Frame Type 125A, Standards CCC, EAC, IEC 60068-2-30, IEC/EN 60947-1 and -2
