  11. Level Gauge, 55 Gallon Drums - Vertical
Shop All Liquid Level Gauges
Ssi

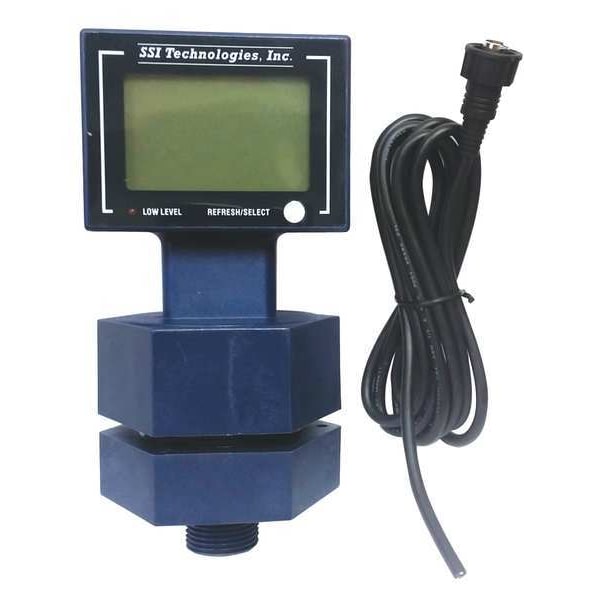

Level Gauge, 55 Gallon Drums - Vertical

product price: $209.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Type Ultrasonic
  • Drum Capacity 55 gal
  • Connection Size 3/4 in NPS or 2 in NPT
  • Assembly Nut Material Polybutylene Terephthalate
  • Material Polybutylene Terephthalate
See all product information

Product Information

Dimensions

Connection Size 3/4 in NPS or 2 in NPT
Manufacturers Warranty Length 1 yr
Manufacturer Warranty Length 1 yr
For Container Depth 32 in
Pipe Size 2 in

Details

Type Ultrasonic
Drum Capacity 55 gal
Assembly Nut Material Polybutylene Terephthalate
Item Level Gauge
Material Polybutylene Terephthalate
Resolution +/-1/2 gal or +/-1 L
Temp. Range 0 Degrees to 120 Degrees F
Operating Temp. 0 Degrees to 120 Degrees F
Bushing Material Polybutylene Terephthalate
Includes 3 ft Cable for 4/20mA Signal, 3/4 in NPS Adapter
For Use With 15 Gallon Drums, 30 Gallon Drums, 55 Gallon Drums
Special Features Red LED Low Level Warning Light, Line Powered (18-26 V DC Needed)
Accuracy +/-2.5% of Full Scale Volume
Thread Type NPS, NPT
For Liquid Type Diesel, Hydraulic Fluid, Motor Oil, Waste Water, Water
Standards ANSI MH2-2004, CE Certified, ISO 9001 Certified, RoHS Compliant
Maximum Temperature 122 Degrees F
Housing Material Polybutylene Terephthalate
Units of Measurement Inches
Operating Voltage 18 to 26V DC
Mounting Orientation Vertical
Features Easy to Install, Low Level Warning Light, More Reliable
For Container Capacity 15 gal, 30 gal, 55 gal
Minimum Temperature 32 Degrees F
For Container Type Drums
Increment of Variation 0.5 gal

Description

Level Gauge, Extension Length Not Applicable, Float Material Not Applicable, For Container Capacity 15 gal, 30 gal, 55 gal, For Container Depth 32 in, For Container Type Drums, For Liquid Type Diesel, Hydraulic Fluid, Motor Oil, Waste Water, Water, Graduation Marks Not Applicable, Includes 3 ft Cable for 4/20mA Signal, 3/4 in NPS Adapter, Increment of Variation 0.5 gal, Pipe Size 2 in, Accuracy +/-2.5 Percent of Full Scale Volume, Assembly Nut Material Polybutylene Terephthalate
