  11. Female Disconnect, Blue, 16 to 14AWG, PK100

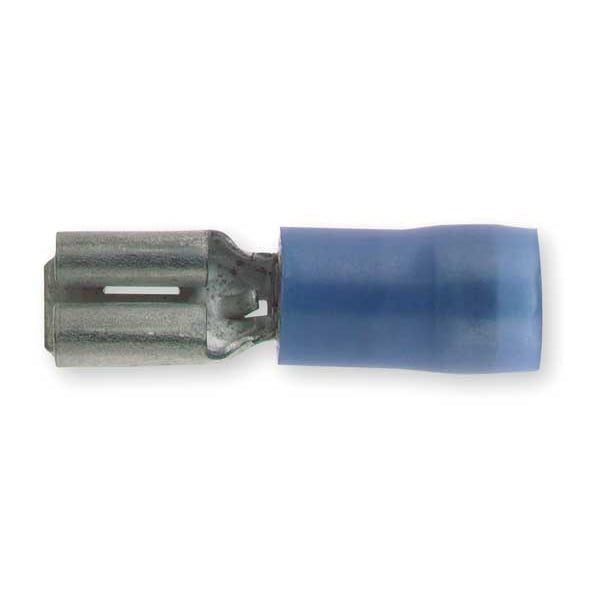

Sta-Kon Female Disconnect, Blue, 16 to 14AWG, PK100 RBD14-182 - main

Female Disconnect, Blue, 16 to 14AWG, PK100

  • Mfr # RBD14-182

  • Zoro # G0840743

product price: $57.89
/pk 100, $0.58/ea

Key Features

Insulation
Partial
Material
Brass
Insulation Color
Blue
Color
Blue
Insulation Type
Nylon
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RBD14-182
Zoro #
G0840743
UPC #
-
Country of Origin
United States

Dimensions

Tab Size
0.020 in x 0.187 in
Overall Length
0.83 in
Barrel Inside Dia.
0.086 in
Minimum Wire Size
16 AWG
Tab Width
0.187 in
Barrel Inside Diameter
0.086 in
Tab Thickness
0.02 in
Maximum Wire Size
14 AWG
Barrel Size
Long
Stock Thickness
0.03

Details

Item
Female Disconnect
Insulation
Partial
Material
Brass
Insulation Color
Blue
Color
Blue
Insulation Type
Nylon
Connection Type
Crimp
Wire Range
16 to 14 AWG
Seam
Overlapped
Max. Voltage
600 V
Max. Temp.
221 Degrees F
Connection Material
Tin-Plated Copper
Standards
UL E66716
Features
Quick, reliable method of connection to terminal blocks and boards without the use of tools.; Unique construction of the female disconnect offers long-term dependability.; Application Tools: WT145C, WT2000, WT112M, ERG4001; Alternate Package Qty: RBD1823
Maximum Voltage
600 V
Barrel Style
Funnel Entry
Insulation Coverage
Partial Coverage
Terminal Type
Socket
Seam Style
Brazed
Disconnect Style
Tab
Insulation Material
Nylon
UL 94 Flammability Rating
Not Rated
Special Features
Brazed Seam Serrated Barrel Provides Maximum Tensile Strength, Unique Construction of the Female Disconnect offers Long-Term Dependability
Contact Material
Brass
RoHS Compliant
No
Maximum Operating Temperature
221 Degrees F
Termination Style
Crimp
Contact Finish
Tin
Terminal Series
RBD
A (inches)
0.83
Disconnect Type
Female - 187 Series
Temperature Rating
105°C
B (inches)
0.23
Maximum Insulation (inches)
0.163
Flammability Rating
UL 94 V-2
Application Tools
WT145C, WT2000, WT112M, ERG4001, ERG4003
Voltage Rating
600V
Recommended Tool
ERG4001
Finish
Electro Tin-Plated
AWG-range
16-14
Type
Nylon Insulated Female Disconnect
Material insulation
PA

Description

Female Disconnect, Contact Finish Tin, Contact Material Brass, Disconnect Style Tab, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Minimum Wire Size 16 AWG, Maximum Wire Size 14 AWG, Maximum Voltage 600 V, Tab Thickness 0.02 in, Tab Width 0.187 in, Terminal Type Socket, Termination Style Crimp, UL 94 Flammability Rating Not Rated, RoHS Compliant No, Seam Style Brazed, Standards UL E66716
