Shop STA-KON

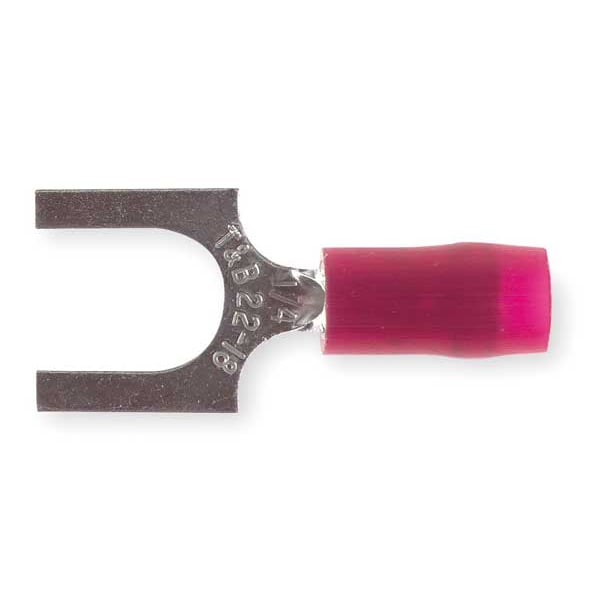

Fork Terminal, 1/4 in Stud Size, 16 AWG, 600 V, Nylon Insulated, Red, Crimp Termination Only

  • Mfr # RA18-14F

  • Zoro # G0817607

product price:  $101.99
/pk 100, $1.02/ea
Free Shipping & Returns

Key Features

Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Minimum Wire Size
22 AWG
Insulation Coverage
Partial Coverage
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
RA18-14F
Zoro #
G0817607
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Stud Size
1/4 in
Tongue Width - Wire Connector
0.44 in
Overall Length
0.95 in
Barrel Length
0.39 in
Tongue Width
0.44 in
Wire Rope Length
0.95 in

Details

Item
Fork Terminal
Terminal Shape
Standard Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Insulation Coverage
Partial Coverage
Insulation Type
Nylon
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed E9809
Wire Range
22 to 16 AWG
Connection Type
Crimp
Terminal Type
Standard
Terminal Connection
Crimp
Max. Temp.
221 Degrees F
Seam
Overlapped
Connection Material
Copper
Features
Inner bronze insulation grip sleeve lengthens flex radius of conductor and eliminates conductor creep.; Nylon jacket is color-coded.; Application Tools: WT145C, WT2000, WT112M, ERG4001, WT145A; Alternate Package Qty: RA1163
Contact Finish
Tin
Barrel Style
Insulation Grip
Seam Style
Brazed
Compatible Manufacturer Model Number
ERG4001, WT112M, WT145A, WT145C, WT2000
Compatible with Series
RA1163
Special Features
Inner Bronze Insulation Grip Sleeve Lengthens Flex Radius of Conductor and Eliminates Conductor Creep
RoHS Compliant
No
Insulation Material
Nylon
Compatible with Product Type
Crimper, Ratchet Crimper
Insulation Dia
0.136 in
Surface protection
Tinned
Series
RA1163

Description

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 16 AWG, Stud Size 1/4 in, Termination Style Crimp, RoHS Compliant No, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.39 in, Barrel Style Insulation Grip, Compatible Grainger Part Number 3KH46, 3KH52, 4XMR5
