  11. Fork Terminal, #6 Stud Size, 14 AWG, 600 V, Nylon Insulated, Blue, Crimp Termination Only, 100 PK

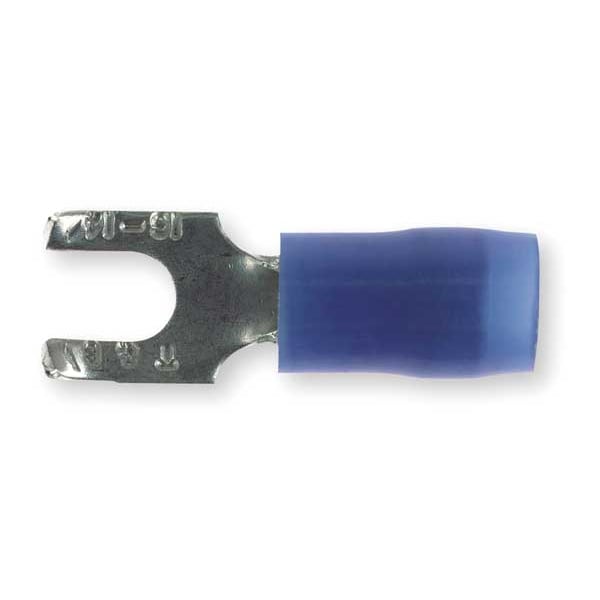

Sta-Kon Fork Terminal, #6 Stud Size, 14 AWG, 600 V, Nylon Insulated, Blue, Crimp Termination Only, 100 PK RB14-6FS - main

Fork Terminal, #6 Stud Size, 14 AWG, 600 V, Nylon Insulated, Blue, Crimp Termination Only, 100 PK

  • Mfr # RB14-6FS

  • Zoro # G1312062

product price: $115.89
/pk 100, $1.16/ea
Free Shipping & Returns

Key Features

Terminal Shape
Flanged Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Minimum Wire Size
18 AWG
Insulation Coverage
Partial Coverage
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RB14-6FS
Zoro #
G1312062
UPC #
-
Country of Origin
United States

Dimensions

Maximum Wire Size
14 AWG
Minimum Wire Size
18 AWG
Stud Size
#6
Tongue Width - Wire Connector
0.28 in
Overall Length
0.74 in
Tongue Length
1/2 in
Barrel Length
0.44 in
Tongue Width
0.28 in

Details

Item
Fork Terminal
Terminal Shape
Flanged Fork
Termination Style
Crimp Termination Only
Insulation Color
Blue
Insulation Coverage
Partial Coverage
Insulation Type
Nylon
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed E9809
Max. Temp.
221 Degrees F
Connection Material
Copper
Connection Type
Crimp
Wire Range
18 to 14 AWG
Terminal Type
Flanged
Terminal Connection
Crimp
Seam
Overlapped
Features
Fork terminals allow easy installation because screw needs only to be loosened.; A flanged-tongue fork with turned up tips provide fo extra holding protection.; Application Tools: WT145C, WT2000, WT112M, ERG4001, WT145A; Alternate Package Qty: RB1203
Special Features
Flanged-Tongue Fork With Turned Up Tips Provide Of Extra Holding Protection, Fork Terminals Allow Easy Installation Because Screw Needs only to be Loosened
Compatible Manufacturer Model Number
ERG4001, WT112M, WT145A, WT145C, WT2000
Contact Finish
Tin
Compatible with Product Type
Crimper, Ratchet Crimper
Insulation Material
Nylon
RoHS Compliant
No
Compatible with Series
RB1203
Barrel Style
Insulation Grip
Seam Style
Brazed
Surface protection
Tinned

Description

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Blue, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 14 AWG, Stud Size #6, Termination Style Crimp, Tongue Length 0.4 in, RoHS Compliant No, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.44 in, Barrel Style Insulation Grip, Compatible Grainger Part Number 3KH46, 3KH52, 4XMR5
