  11. Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Nylon Insulated, Red, Crimp Termination Only, 100 PK

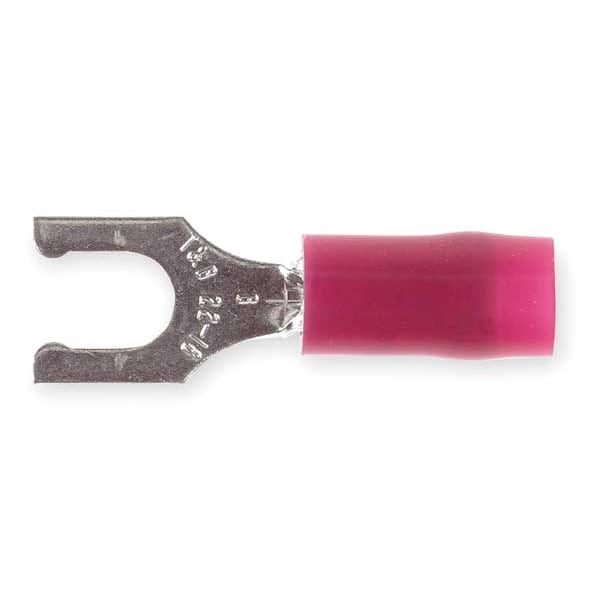

Sta-Kon Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Nylon Insulated, Red, Crimp Termination Only, 100 PK RA18-8FL - main

Fork Terminal, #8 Stud Size, 16 AWG, 600 V, Nylon Insulated, Red, Crimp Termination Only, 100 PK

  • Mfr # RA18-8FL

  • Zoro # G1169716

product price: $79.19
/pk 100, $0.79/ea
Free Shipping & Returns

Key Features

Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Minimum Wire Size
22 AWG
Insulation Coverage
Partial Coverage
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
RA18-8FL
Zoro #
G1169716
UPC #
786210887319
Country of Origin
United States

Dimensions

Maximum Wire Size
16 AWG
Minimum Wire Size
22 AWG
Stud Size
#8
Overall Length
0.86 in
Tongue Width - Wire Connector
0.29 in
Tongue Length
1/2 in
Tongue Width
0.29 in
Barrel Length
0.46 in

Details

Item
Fork Terminal
Terminal Shape
Locking Fork
Termination Style
Crimp Termination Only
Insulation Color
Red
Insulation Coverage
Partial Coverage
Insulation Type
Nylon
Contact Material
Copper
Maximum Voltage
600 V
Maximum Operating Temperature
221 Degrees F
Standards
CSA Certified, UL Listed E9809
Max. Temp.
221 Degrees F
Terminal Connection
Crimp
Connection Material
Copper
Connection Type
Crimp
Seam
Overlapped
Wire Range
22 to 16 AWG
Features
Locking fork terminals have a specially designed tongue that lets them go on like a fork and stay on like a ring.; Application Tools: ERG4001, WT145C, WT2000, WT112M, WT145A; Alternate Package Qty: RA2243
Contact Finish
Tin
Compatible with Product Type
Crimper, Ratchet Crimper
Compatible with Series
RA2243
RoHS Compliant
No
Compatible Manufacturer Model Number
ERG4001, WT112M, WT145A, WT145C, WT2000
Special Features
Locking Fork Terminals Have a Specially Designed Tongue That Lets Them Go on Like a Fork and Stay on Like a Ring
Seam Style
Brazed
Barrel Style
Insulation Grip
Insulation Material
Nylon
Surface protection
Tinned

Description

Fork Terminal, Contact Finish Tin, Contact Material Copper, Insulation Color Red, Insulation Coverage Partial Coverage, Insulation Material Nylon, Maximum Operating Temperature 221 Degrees F, Maximum Voltage 600 V, Maximum Wire Size 16 AWG, Stud Size #8, Termination Style Crimp, Tongue Length 0.42 in, RoHS Compliant No, Seam Style Brazed, Standards CSA Certified, UL Listed, Barrel Length 0.46 in, Barrel Style Insulation Grip, Compatible Grainger Part Number 3KH46, 3KH52, 4XMR5
