1-1/4 inx1-1/4 in 1PC Flng Cplg/KW
Mfr # 5L104104KPXC
Zoro # G415580873
product price:Â
$
122.99
/ea
Free Shipping & Returns
Key Features
Material - Couplings
Steel
Overall Length
3.375 in
Finish
Black Oxide
Screw Size
1/4-28 x 3/4 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 5L104104KPXC
- Zoro #
- G415580873
- UPC #
- 662786031502
- Country of Origin
- United States
Dimensions
- Bore Dia.
- 1-1/4 in
- Outside Dia.
- 3.48 in
- Overall Length
- 3.375 in
- Screw Size
- 1/4-28 x 3/4 in
Details
- Material - Couplings
- Steel
- Finish
- Black Oxide
Description

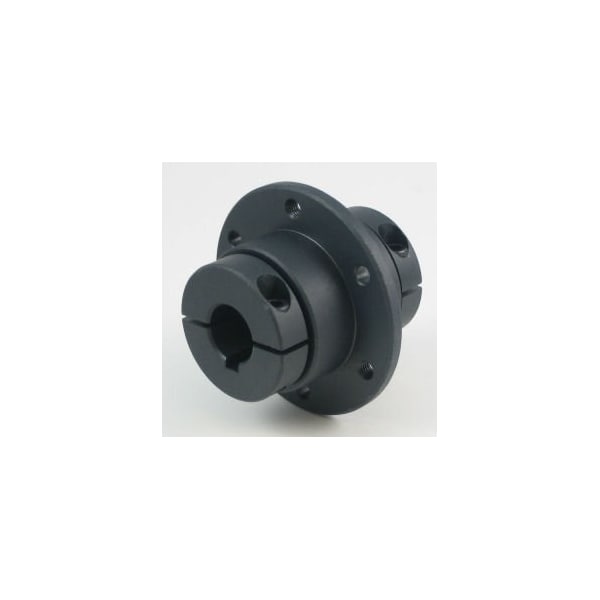

1-1/4" X 1-1/4" Precision Sleeve Flange Coupling One-Piece Clamp-Type,Steel
- Assure precise shaft alignment
- Axial runout less than 0.001-TIR
- Flange allows for mounting components
- Includes standard keyway
- Smooth bore protects shafts from damage
- The Precision Sleeve Flange coupling allows for mounting components such as gears, motors, brake assemblies etc. to the coupling.
- The flange includes three through holes and three tapped holes.
- It features a solid center section that provides a close tolerance fit on ground shafting, includes a keyway, and the Accu-ClampTM design which incorporates integral self-centering clamping collars at both ends.
- To assure precise shaft alignment, it maintains less than 0.001 TIR concentricity while in use.
- It is precision machined, non-marring, easy to adjust, with high clamping power.
- Stocked in: Steel
