1/2 in Adj Stop Collar Assembly

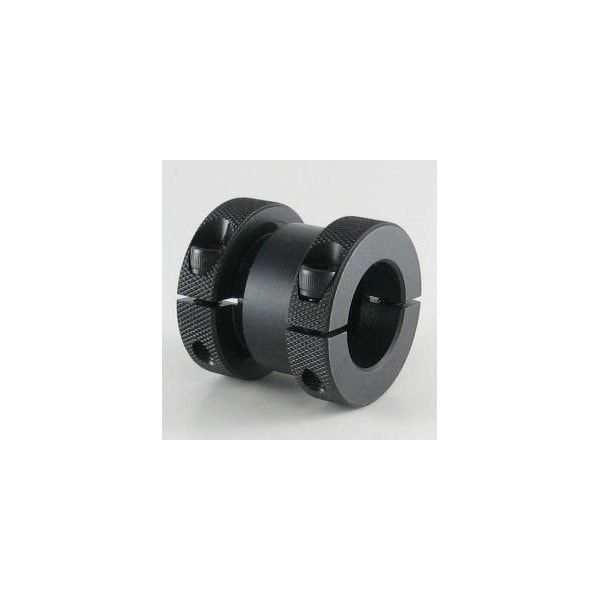

1/2" Micro-Adjust Stop Collar Assembly, Steel

• Can be used as a stop, locator or adjustable shim
• Provides micrometer-like adjustability of either or both collar faces
• Knurled edges for easy turning
• Superior axial holding power
• The Micro-Adjust Stop Collar Assembly clamps directly to a shaft and provide fine-tune adjustability in either direction.
• The collar assembly consists of two knurled collars which clamp directly onto a shaft and feature a male-female connecting hub that provides a range of adjustment.
• Designed for accurate fine-tune positioning, the collars connect using 40 pitch threads that operate smoothly, each traveling 0.025" per turn.
• Since the entire assembly consists of two one-piece collars which clamp directly to a shaft and screw into each other, it provides superior axial holding power.
• To make a simple axial adjustment, just clamp one side of the assembly on a shaft, move the other side, then clamp it, and repeat the process infinitely as needed.
• Stocked in: Steel, Stainless Steel
