3 in Accu-Flange Collar
Mfr # 1S300AFXK
Zoro # G515580346
product price: $766.99
/ea
Free Shipping & Returns
Key Features
Screw Size
3/8-24 in
Outside Dia.
6.355 in
Bore Dia.
3 in
Width
6.355 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
1S300AFXK
Zoro #
G515580346
UPC #
662786031014
Country of Origin
United States
Dimensions
Screw Size
3/8-24 in
Outside Dia.
6.355 in
Bore Dia.
3 in
Width
6.355 in
Details
Material
Stainless Steel
Description

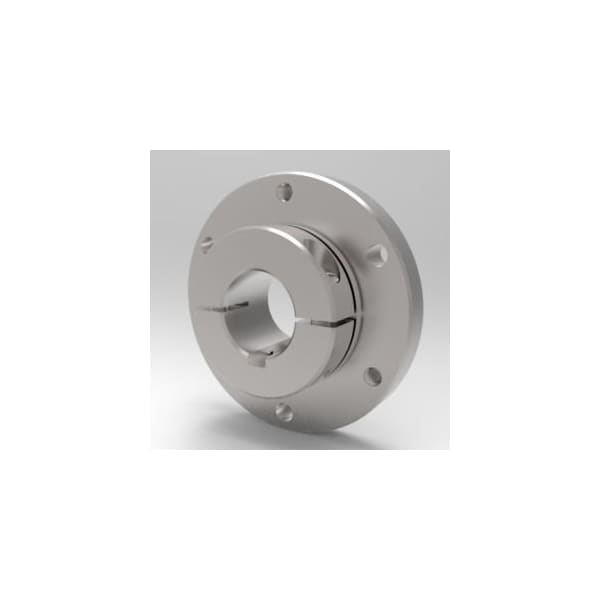

3" Accu-Flange Shaft Mounting Collar, Stainless Steel
- Machineable to user specifications
- Applications include pulleys, cams and for mounting components
- Integral clamp provides high strength, non-marring hold
- Machineable to user specifications
- Includes standard keyway
- Accu-FlangeTM Mounting Collar is a machineable flange collar that can be configured by the user to perform a wide range of applications such as a pulley, cam, or component mounting device.
- Featuring an integral clamp incorporating a double-split design and relief groove, this clamping flange collar retains its perpendicularity, will not mar expensive shafts, and is easy to adjust.
- A standard keyway, along with through holes and three tapped holes are incorporated into the design.
- The user-machineable Accu-FlangeTM Mounting Collar also lets designers rapidly develop a custom solution from a standard product line and then order parts machined to specification in production quantities if required.
- Stocked in: Steel, Stainless Steel, Aluminum
