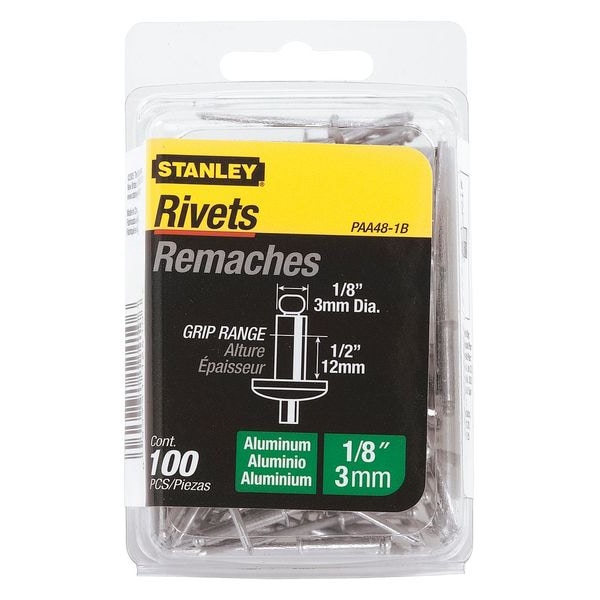

Blind Rivet, Dome Head, 1/8 in Dia., 1/2 in L, Aluminum Body, 100 PK
Mfr # PAA48-1B
Zoro # G9968777
CAD Available
product price: $3.92
/pk 100, $0.04/eaKey Features
CAD Drawing
Head Type
Dome
Body Material
Aluminum
Mandrel Material
Steel
Grip Range
0.376 in to 0.500 in
Body Length
1/2 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
PAA48-1B
Zoro #
G9968777
UPC #
045731124106
Country of Origin
China
Dimensions
Rivet Diameter
1/8 in
Body Length
1/2 in
Head Dia.
0.220 in
Drill Size
1/8 in
Hole Size
1/8 in
Head Height
0.03 in
Overall Length
1 19/32 in
Head Diameter
1/8 in
Minimum Material Thickness
3/8 in
Maximum Hole Diameter
0.125 in
Maximum Material Thickness
1/2 in
Shank Diameter
0.125 in
Description
Blind Rivet,1.59 in L,0.125 in dia,PK100, System of Measurement Inch, Overall Length 1 19/32 in, Body Length 1/2 in, Shank Diameter 0.125 in, Product Type Blind Rivet, Body Material Aluminum, Head Type Dome, Head Diameter 1/8 in, Shear Strength 155 lb, Tensile Strength 235 lb, Maximum Hole Diameter 0.125 in, Minimum Material Thickness 3/8 in, Maximum Material Thickness 1/2 in, Material Grade/Class IFI-114-19, Mandrel Material Steel, Manufacturer Location Globally Sourced, Drill Size 1/8 in
