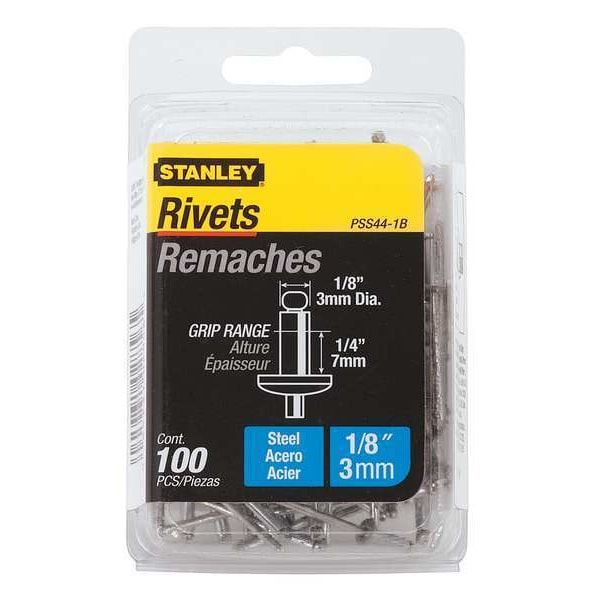

Blind Rivet, Dome Head, 1/8 in Dia., 13/32 in L, Steel Body, 100 PK
Mfr # PSS44-1B
Zoro # G4722724
CAD Available
product price:Â $4.65
/pk 100, $0.05/eaKey Features
CAD Drawing
Head Type
Dome
Body Material
Steel
Mandrel Material
Steel
Rivet Diameter
1/8 in
Grip Range
0.188 in to 0.250 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
PSS44-1B
Zoro #
G4722724
UPC #
045731028565
Country of Origin
China
Dimensions
Rivet Diameter
1/8 in
Body Length
13/32 in
Head Dia.
0.250 in
Head Height
0.04 in
Drill Size
#30
Hole Size
0.129 in to 0.133 in
Overall Length
2 19/32 in
Minimum Material Thickness
3/16 in
Head Diameter
1/4 in
Shank Diameter
0.125 in
Maximum Hole Diameter
0.125 in
Minimum Hole Diameter
0.129 in
Maximum Material Thickness
1/4 in
Description
Blind Rivet,2 3/5 in L,1/8 in dia,PK100, System of Measurement Inch, Overall Length 2 19/32 in, Body Length 13/32 in, Shank Diameter 0.125 in, Product Type Blind Rivet, Body Material Steel, Head Type Dome, Head Diameter 1/4 in, Shear Strength 260 lb, Tensile Strength 340 lb, Maximum Hole Diameter 0.125 in, Minimum Material Thickness 3/16 in, Maximum Material Thickness 1/4 in, Material Grade/Class IFI-114-30, Mandrel Material Steel, Features Reusable, Minimum Hole Diameter 0.129 in
