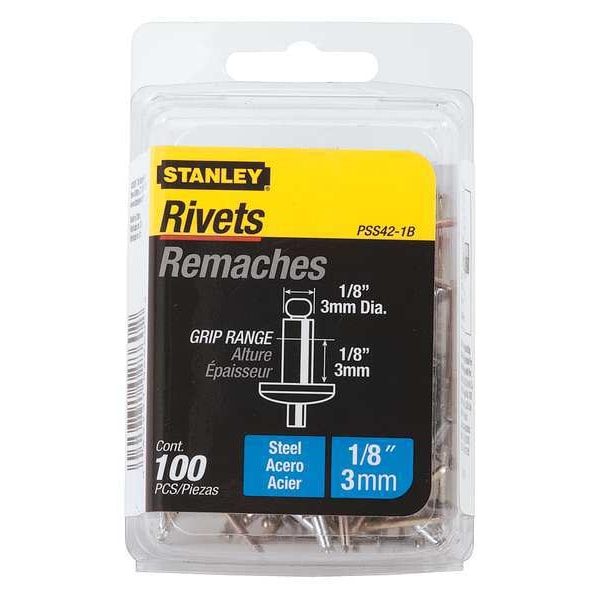

Blind Rivet, Dome Head, 1/8 in Dia., 1/8 in L, Steel Body, 100 PK
Mfr # PSS42-1B
Zoro # G4560507
CAD Available
product price: $3.95
/pk 100, $0.04/eaKey Features
CAD Drawing
Head Type
Dome
Body Material
Steel
Mandrel Material
Steel
Rivet Diameter
1/8 in
Grip Range
0.063 in to 0.125 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
PSS42-1B
Zoro #
G4560507
UPC #
045731028602
Country of Origin
China
Dimensions
Rivet Diameter
1/8 in
Body Length
1/8 in
Head Dia.
0.250 in
Drill Size
1/8 in
Hole Size
0.137 in
Head Height
0.04 in
Overall Length
1 7/32 in
Head Diameter
1/4 in
Maximum Hole Diameter
0.125 in
Shank Diameter
0.125 in
Minimum Material Thickness
1/16 in
Maximum Material Thickness
1/8 in
Description
Blind Rivet,1 9/40 in L,1/8 in dia,PK100, System of Measurement Inch, Overall Length 1 7/32 in, Body Length 1/8 in, Shank Diameter 0.125 in, Product Type Blind Rivet, Body Material Steel, Head Type Dome, Head Diameter 1/4 in, Shear Strength 260 lb, Tensile Strength 310 lb, Maximum Hole Diameter 0.125 in, Minimum Material Thickness 1/16 in, Maximum Material Thickness 1/8 in, Material Grade/Class IFI-114-30, Mandrel Material Steel, Features Reusable, Manufacturer Location Globally Sourced
