Shop STANLEY ENGINEERED FASTENING

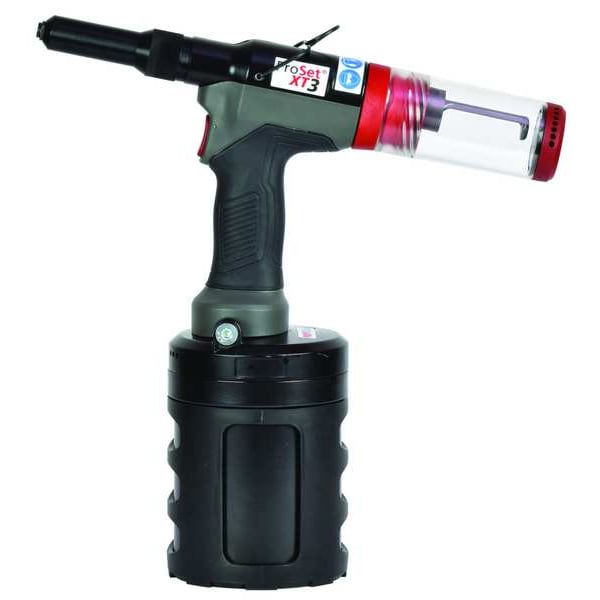

Riveter, Industrial Duty, 4206 lb. Force

  • Mfr # 76003-00003

  • Zoro # G3378492

product price:
$
1,328.99
/ea
Free Shipping & Returns

Key Features

Overall Length
13 3/8 in
Tool Weight
4.7 lb
Stroke Length
1 in
Construction
Steel
Pulling Force
4,206 lbf
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
76003-00003
Zoro #
G3378492
UPC #
-
Country of Origin
Czechia

Dimensions

Overall Length
13 3/8 in
Stroke Length
1 in
Length
13 3/8 in
Rivet Nut Dia.
1/2"
Height
13 1/2 in
Blind Rivet Dia.
3/16 in, 1/4 in
Air Inlet Size - Air Tools
1/4 in NPT
Min. Hose Size
1/4 in
Nose Dia.
1 in
Overall Width
4 in
Nose Length
3 in
Blind Rivet Dia. - Steel
5/32 in, 3/16 in, 1/4 in
Overall Height
13 1/2 in
Blind Rivet Dia. - Stainless Steel
5/32 in, 3/16 in, 1/4 in
Blind Rivet Dia. - Aluminum
5/32 in, 3/16 in, 1/4 in
Nose Diameter
1 in
Blind Rivet Diameter - Stainless Steel
5/32 in, 3/16 in, 1/4 in
Blind Rivet Diameter
3/16 in, 1/4 in
Blind Rivet Diameter - Steel
5/32 in, 3/16 in, 1/4 in
Blind Rivet Diameter - Aluminum
5/32 in, 3/16 in, 1/4 in
Hose Size - Minimum
1/4 in
Air Inlet Connection Size
1/4 in
Wire Rope Length
13 3/8 in

Details

Item
Air Riveter
Tool Weight
4.7 lb
Construction
Steel
Pulling Force
4,206 lbf
Item - Air Riveters
Air Riveter
Mandrel Collection System Included
Yes
Duty Cycle - Air Tools
Industrial Duty
Max. Pressure
101.5 psi
Duty
Industrial
CFM per Stroke
5.77
Pulling Force - Air Riveters
4,206 lb
Air Inlet
1/4 in NPT
Air Consumption
5.8 cfm
Max. Air Pressure
90 psi
Rivet Type
Blind Rivet
Min. Air Pressure
72 psi
Power Source
Air-Powered
Exhaust Location
Bottom
Air Pressure
102 psi
Duty Rating
Industrial Duty
Housing Material
Steel
Includes Mandrel Collection
Yes
Features
Set Uniform Rivets In Any Position
Material
Steel
Air Inlet Type
NPT
Tool Life
Ultra Durable
Air Pressure - Minimum
72 psi
Air Pressure - Maximum
90 psi
Flow per Stroke
5.77 cfm
Frequency of Use
Frequent Maintenance to Heavy Production
Power Source - TS Only
Air-Powered
Power Source - old
Air-Powered

Description

Air Riveter, Air-Powered, Air Consumption 5.8 cfm, Air Inlet 1/4 in NPT, Air Pressure 102 psi, Max. Air Pressure 90 psi, Min. Air Pressure 72 psi, Min. Hose Size 1/4 in, Exhaust Location Bottom, Duty Rating Industrial Duty, Tool Brand Pop Avdel, For Rivet Nut Thread Size Not Applicable, Pulling Force 4,206 lbf, Rivet Type Blind Rivet, Blind Rivet Dia. - Aluminum 5/32 in, 3/16 in, 1/4 in, Blind Rivet Dia. - Stainless Steel 5/32 in, 3/16 in, 1/4 in
