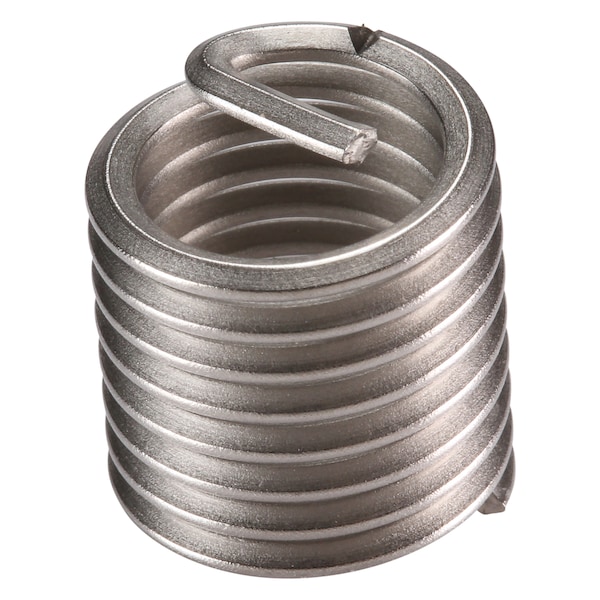

Tanged Helical Insert, Free-Running, M12-1.75 Thrd Sz, 18-8 Stainless Steel, 6 PK
Mfr # R1084-12
Zoro # G2106465
CAD Available
product price:Â $15.49
/pk 6, $2.58/eaKey Features
CAD Drawing
Overall Length
18 mm
Thread Direction
Right Hand
Material
18-8 Stainless Steel
Material Grade/Class
Not Graded
Finish
Plain
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
R1084-12
Zoro #
G2106465
UPC #
025964120021
Country of Origin
United States
Dimensions
Overall Length
18 mm
Thread Size
M12-1.75
Drill Bit Size
12.50 mm
Outside Diameter
14.65 mm
Compatible Tap Size
M12-1.75
Tap Sizes
M12x1.75 STI
Free Coil Dia.
14.65 mm
Length
18 mm
Internal Thread Size
M12 x 1.75
Drill Size
12.5mm
Description
Helical Insert, Helical Insert Type Free-Running, System of Measurement Metric, Overall Length 18 mm, Thread Size M12-1.75, Thread Direction Right Hand, Thread Type Coarse, Material Stainless Steel, Material Grade/Class 18-8, Finish Plain, Tang Style Tanged, Compatible Material Metal, Compatible Tap Size M12-1.75, Drill Bit Size 31/64 in, Maximum Hole Diameter Not Applicable, Tensile Strength 200,000 to 250,000 psi, Outside Diameter 14.66 mm, Manufacturer Location Made in USA
