  13. Lever Lockset, Mechanical, Passage, Grd. 1

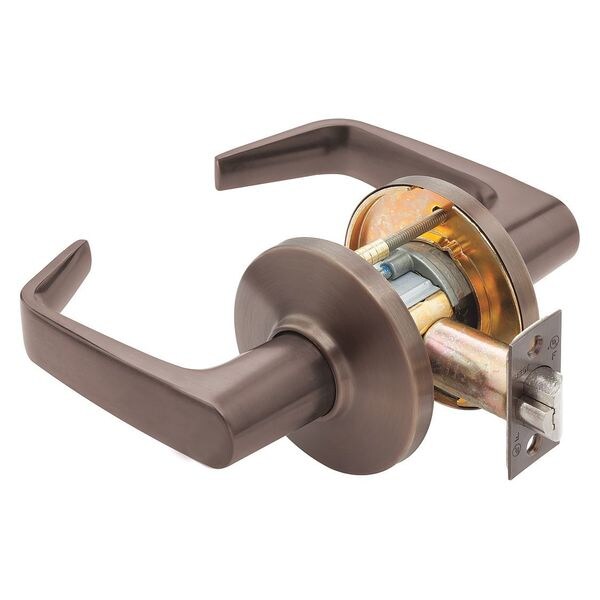

Stanley Security Lever Lockset, Mechanical, Passage, Grd. 1 9K30N15DS3613 - main

Lever Lockset, Mechanical, Passage, Grd. 1

  • Mfr # 9K30N15DS3613

  • Zoro # G0283766

product price: $443.99
/ea
Free Shipping & Returns

Key Features

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Hollow Metal and Wood Doors
Includes
Mounting Hardware
Key Type
Not Keyed
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
9K30N15DS3613
Zoro #
G0283766
UPC #
-
Country of Origin
United States

Dimensions

Required Door Thickness
1-3/4 in to 2-1/4 in
Door Thickness - Maximum
2 1/4 in
Door Thickness - Minimum
1 3/4 in
Strike Plate Height
4 7/8 in
Strike Plate Width
1 1/4 in

Details

Backset
2 3/4 in
Electrical/Mechanical
Mechanical
For Use With
Hollow Metal and Wood Doors
Includes
Mounting Hardware
Key Type
Not Keyed
Keyway Type
None
Location Type
Commercial, Institutional
Lockset Function
Passage
Lockset Grade
1
Lockset Handle Type
Lever
Mortise/Cylindrical
Cylindrical
Number of Pins
6
Series
9K
Style
9K Angled
Finish
Oxidized Satin Bronze, Oil Rubbed
Lockset Finish
Oil Rubbed Bronze
ADA Compliant
Yes
Lockset Fire Rating
3 hr
Lockset Performance Strength
Extra Heavy Duty
Number of Keys
0
Ligature Resistant
No
Strike Dim.
4-7/8 in x 1-1/4 in
Handle Material
Zinc
Features
Corrosion Treated Internal Steel Mechanisms
Strike Type
ANSI
Standards
BHMA, UL Listed
Mortise / Cylindrical
Cylindrical
Cylinder Core Type
Large Format Interchangeable Core Cylinder
Item
Door Lockset
Application
Commercial
Grade
1
Keying
Unkeyed
Fire Rated
3 hr.
Visual Indicator Message
No Message
Lockset Style
Contour Angle Return
Latch Bolt/Dead Bolt
Dead Latch
Lockset Type
Mechanical
Knob/Handle Material
Bronze
Fire Rating
3 hr
Includes Core
Core Not Included
ANSI/BHMA Finish
Dark Oxidized Satin Bronze, Oil Rubbed
Ligature-Resistant
Not Ligature-Resistant
ANSI Grade
1
Performance Grade
1
Locking/Unlocking Access - Outside
Not Lockable
Lockset Function ANSI Code
F75
Hand Orientation
Non-Handed
Locking/Unlocking Access - Inside
Not Lockable
Includes Hardware
Hardware Included

Description

Lever Lockset,Mechanical,Passage,Grd. 1
