Shop STARRETT

Alignment Clamp Set w/2ZUH4 Indicator

  • Mfr # S668DZ

  • Zoro # G1681644

product price:
$
1,511.99
/ea
Free Shipping & Returns

Key Features

Frame Material
Aluminum
Application
Alignment of Motors, Pumps, Compressors and is Capable of Addressing Radial and Angular Misalignment Problems
Features
Heavy Duty Roller Chain Accommodates up to a 7 1/2 in Dia Shaft
Jaw Type
V-Shaped
Band Material
Steel
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
S668DZ
Zoro #
G1681644
UPC #
049659671537
Country of Origin
United States
Item
Shaft Alignment Clamp Set
Frame Material
Aluminum
Application
Alignment of Motors, Pumps, Compressors and is Capable of Addressing Radial and Angular Misalignment Problems
Features
Heavy Duty Roller Chain Accommodates up to a 7 1/2 in Dia Shaft
Type
w/No. 2ZUH4 Indicator and Case
Jaw Type
V-Shaped
Band Material
Steel
Includes
Case, Chain Clamp, Extension Plate, Posts
Indicator Post Material
Stainless Steel
Reading
Balanced
Dial Reading
0-50-0
Includes Case
Yes
Clamp Construction
Anodized Aluminum
Included Indicator
(2) 81-141J
Number of Indicator Posts
3
Graduations
0.2 in
Range per Revolution
0.1 in
Dial Gauge Range
0.25 in
Number of Clamps
2
Operating Temperature - Maximum
114 Degrees F
Product Type
Shaft Alignment Clamp Tool
Operating Temperature - Minimum
30 Degrees F
Indicator Type
Dial
Alignment Distance - Maximum
7 1/2 in
Clamp Material
Aluminum

Description

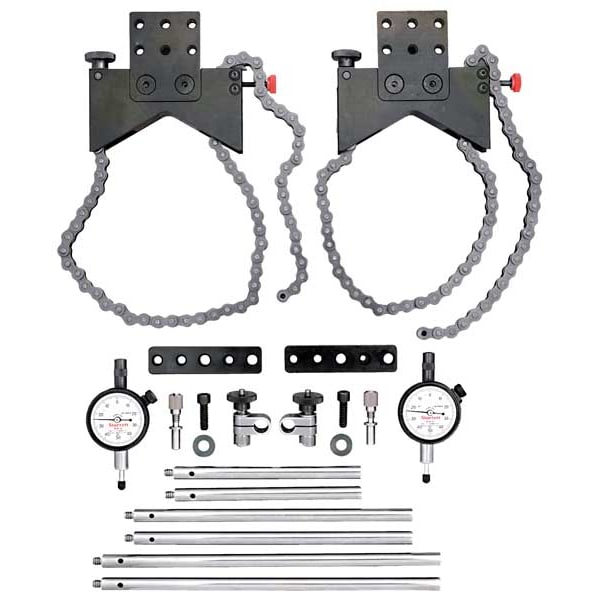

The STARRETT S668DZ is a shaft alignment clamp set used for aligning motors, pumps, compressors, and similar equipment. It is designed to address radial and angular misalignment problems and includes two 81-141J dial indicators for measurement. The set uses lightweight black anodized aluminum clamps with a heavy-duty steel roller chain and comes packed in a case.

Key Features of the STARRETT S668DZ Shaft Alignment Clamp Set:

  • Application: Used for shaft alignment on motors, pumps, compressors, and related equipment.
  • Misalignment Capability: Addresses both radial and angular misalignment.
  • Maximum Shaft Diameter: Heavy-duty roller chain accommodates shafts up to 7-1/2 in diameter.
  • Clamp Material: Aluminum clamp construction with black anodized finish.
  • Included Indicators: Supplied with (2) Starrett 81-141J dial indicators.
  • Indicator Type: Dial indicators with 0.25 in range and 0-50-0 balanced reading.
  • Indicator Posts: Includes 3 stainless steel posts with 3/8 in diameter; post lengths include 5 in, 7-7/16 in, and 9 in.
  • Extension Plate: Included to provide added radial clearance.
  • Includes: Case, chain clamp, extension plate, and posts.
  • Number of Clamps: 2 clamps included in the set.
