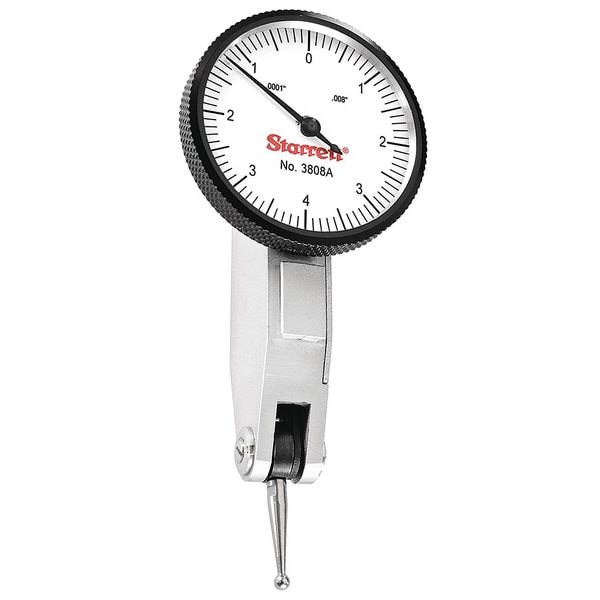

Starrett Dial Test Indicator Set, 1-1/4", White 3808A - main

Dial Test Indicator Set, 1-1/4", White

  • Mfr # 3808A

  • Zoro # G1588279

product price: $208.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0001 in
Range
0 in to 0.008 in
Features
Three Dovetail Positioning Mounts Work with Most Existing Test Indicator Accessories; Precision Gear-Driven Design with Smooth, Jeweled Movement; Contact Point Reverses Automatically, always Maintaining Clockwise Hand Rotation; Contacts are Frictionally Adjustable and Replaceable; Meets or Exceeds ANSI/ASME Accuracy Specifications; Narrow Body for in Reach Ability; Durability
Finish
Satin Chrome
Accuracy
0.0001 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3808A
Zoro #
G1588279
UPC #
049659123319
Country of Origin
China

Dimensions

Contact Point Length
1/2 in
Dial Size
1.25 in
Contact Point Dia.
0.15625 in
Stylus Length
0.1875 in, 20 mm
Dimension Type
Inch
Contact Point Diameter
0.15625 in

Details

Graduations
0.0001 in
Range
0 in to 0.008 in
Features
Three Dovetail Positioning Mounts Work with Most Existing Test Indicator Accessories; Precision Gear-Driven Design with Smooth, Jeweled Movement; Contact Point Reverses Automatically, always Maintaining Clockwise Hand Rotation; Contacts are Frictionally Adjustable and Replaceable; Meets or Exceeds ANSI/ASME Accuracy Specifications; Narrow Body for in Reach Ability; Durability
Finish
Satin Chrome
Accuracy
0.0001 in
Includes
3/8 in Dovetail Clamp; 5/32 in Dovetail Clamp
Indicator Style
Horizontal
Contact Point Style
Ball
Reading
Balanced
Bearing Type
Jeweled
Series
Starrett 3808
Dial Reading
0-4-0
Range per Revolution
0.008 in
Dial Color
White
Item
Horizontal Dial Test Indicator
Long Form Calibration Certificate
No
Standards
ANSI
Includes Case
Yes
Maximum Measurement - Inch
0.008 in
Includes Dovetail Mount Attachments
Yes
Operation Type
Lever-Style
Minimum Measurement - Inch
0 in
Contact Point Shape
Ball
Number of Indicators
1
Mounting Style
Dovetail
Included Certification
None
Contact Point Material
Steel
Test Indicator Style
Horizontal
Non-Magnetic Tip
No
Product Type
Horizontal Dial Test Indicator
Inches Measured - Maximum
0.008 in
Inches Measured - Minimum
0 in

Description

If you're looking for a dial test indicator that is accurate and easy to use, then the Starrett 3808A Dial Test Indicator Set will be just what you need. This horizontal dial test indicator comes with a satin chrome finish. It has a range of 0 in. to 0.008 in.. With graduations of 0.0001 in., this white dial indicator has an accuracy of +/-0.0001 in.. The lever style operation makes it easy to read measurements on the 1.25 in. dial face from any angle or position without having to change your grip on the tool itself or interfere with your work piece while measuring at odd angles and positions that may be difficult to reach otherwise. If you're looking for a way to measure small objects, like bolts and nuts, the Starrett 3808A Dial Test Indicator Set is definitely worth considering.
