  13. Dial Test Indicator Set, 1-1/4", Yellow

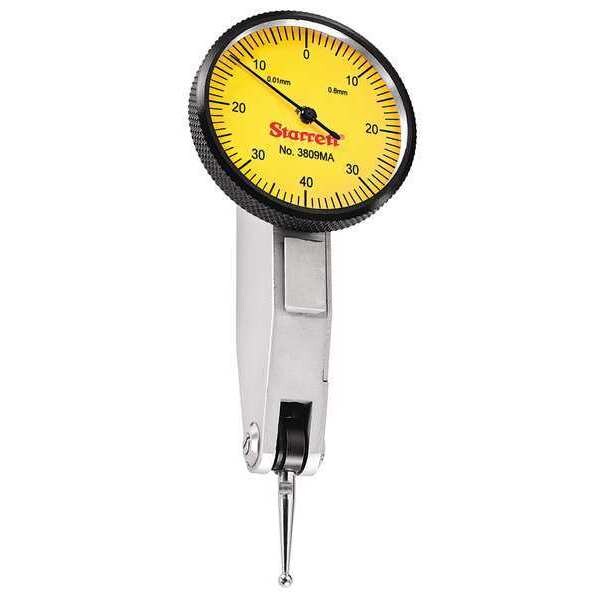

Starrett Dial Test Indicator Set, 1-1/4", Yellow 3809MA - main

Dial Test Indicator Set, 1-1/4", Yellow

  • Mfr # 3809MA

  • Zoro # G1592433

product price: $179.99
/ea
Free Shipping & Returns

Key Features

Graduations
0.0005 in
Range
0 mm to 0.8 mm
Features
Three Dovetail Positioning Mounts Work with Most Existing Test Indicator Accessories; Precision Gear-Driven Design with Smooth, Jeweled Movement; Contact Point Reverses Automatically, always Maintaining Clockwise Hand Rotation; Contacts are Frictionally Adjustable and Replaceable; Meets or Exceeds ANSI/ASME Accuracy Specifications; Narrow Body for in Reach Ability; Durability
Finish
Satin Chrome
Accuracy
0.01 mm
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3809MA
Zoro #
G1592433
UPC #
049659123340
Country of Origin
China

Dimensions

Contact Point Length
1/2 in
Contact Point Dia.
4 mm
Dial Size
1.25 in
Dimension Type
Metric
Stylus Length
0.1875 in, 20 mm
Contact Point Diameter
4 mm

Details

Graduations
0.0005 in
Range
0 mm to 0.8 mm
Features
Three Dovetail Positioning Mounts Work with Most Existing Test Indicator Accessories; Precision Gear-Driven Design with Smooth, Jeweled Movement; Contact Point Reverses Automatically, always Maintaining Clockwise Hand Rotation; Contacts are Frictionally Adjustable and Replaceable; Meets or Exceeds ANSI/ASME Accuracy Specifications; Narrow Body for in Reach Ability; Durability
Finish
Satin Chrome
Accuracy
0.01 mm
Includes
4 mm Clamp, 9.5 mm Clamp
Indicator Style
Horizontal
Contact Point Style
Ball
Reading
Balanced
Bearing Type
Jeweled
Series
Starrett 3809
Dial Reading
0-40-0
Dial Color
Yellow
Range per Revolution
0.8 in
Item
Horizontal Dial Test Indicator
Long Form Calibration Certificate
No
Standards
ANSI
Operation Type
Lever-Style
Contact Point Shape
Ball
Contact Point Material
Steel
Includes Case
Yes
Included Certification
None
Number of Indicators
1
Mounting Style
Dovetail
Maximum Measurement - mm
0.8 mm
Test Indicator Style
Horizontal
Minimum Measurement - mm
0 mm
Includes Dovetail Mount Attachments
Yes
Non-Magnetic Tip
No
Product Type
Horizontal Dial Test Indicator
Millimeters Measured - Maximum
0.8 mm
Millimeters Measured - Minimum
0 mm

Description

The Starrett 3809MA Dial Test Indicator Set is a reliable measuring tool that will help you get the job done right. With an accuracy of +/- 0.01 mm, this dial indicator has a range of 0 mm to 0.8 mm. Featuring a satin chrome finish and graduations in 0.01 mm, it has a 1 1/4" dial size and lever operation type. It also comes with a balanced dial reading of 0-40-0 and yellow dial color for easy reading. The Starrett 3809MA Dial Test Indicator Set is the quality measuring tool you can rely on to do the job well done every time.
