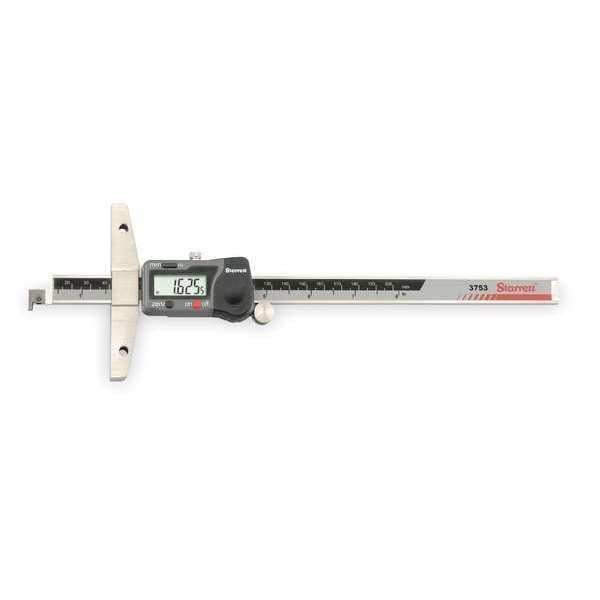

Electronic Depth Gage, 6 In, 2 3/4 In Base

  • Mfr # 3753A-6/150

  • Zoro # G1027363


product price: $469.99
/ea
Free Shipping & Returns

Key Features

SPC Output
No
Base Style
Full
Range
0 in to 6 in, 0 mm to 150 mm
Resolution
0.0005 in/0.01 mm
Base Length
2-3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3753A-6/150
Zoro #
G1027363
UPC #
049659122589
Country of Origin
China

Dimensions

Base Length
2-3/4 in
Battery Size
CR2032
Blade Width
0.50 in
Dimension Type
Inch/Metric
Depth Gauge Type
Adjustable

Details

Item
Digital Depth Gauge
SPC Output
No
Base Style
Full
Range
0 in to 6 in, 0 mm to 150 mm
Resolution
0.0005 in/0.01 mm
Number of Measuring Rods
0
Long Form Calibration Certificate
No
Anvil
Flat
Rod Type
Adjustable, Solid
Lock Nut Type
Slide
Includes
Fitted case
Features
Fine Adjustment Thumb Roll for Precision Measurements, Inch/millimeter Conversion
Anvil Material
Hardened Steel
Spindle
Flat
Rotating Spindle (Yes/No)
No
Spindle Material
Hardened Steel
Display Type
LCD
Coolant Resistant
No
Includes Battery
Yes
Minimum Measurement - mm
0 mm
Contact Point Material
Stainless Steel
Functions
Inch/mm Conversion, Manual On/Off, Zero at Any Position
Case Included
Yes
Accuracy
+/-0.001 in
Operation Type
Digital
Minimum Measurement - Inch
0 in
Blade Material
Stainless Steel
Blade Tip Shape
Flat, Hook
Case Type
Plastic Case
Actuation Style
Slide
Contact Point Shape
Flat
Data Output Type
Cable
IP Rating
Not Rated
Millimeters Measured - Maximum
150 mm
Included Certification
Not Included
Inches Measured - Minimum
0 in
Millimeters Measured - Minimum
0 mm
Inches Measured - Maximum
6 in

Description

This Starrett 3753A-6/150 Electronic Depth Gage is a precise measuring tool that you can rely on. It comes with a fine adjustment thumb roll for precision measurements, and inch/millimeter conversion for easy readability. The depth gauge has an adjustable rod which allows you to measure objects between 0 in and 6 in. With a 2 3/4" base length and full base style, the unit provides maximum stability when taking measurements. Its flat blade tip shape with removable hook lets you work around corners or under piping without damaging them. The unit also features an inch/mm conversion function as well as manual on/off and zero at any position functions. If you want to ensure accuracy when working with small parts, this Starrett 3753A Electronic Depth Gauge is the tool for the job.
