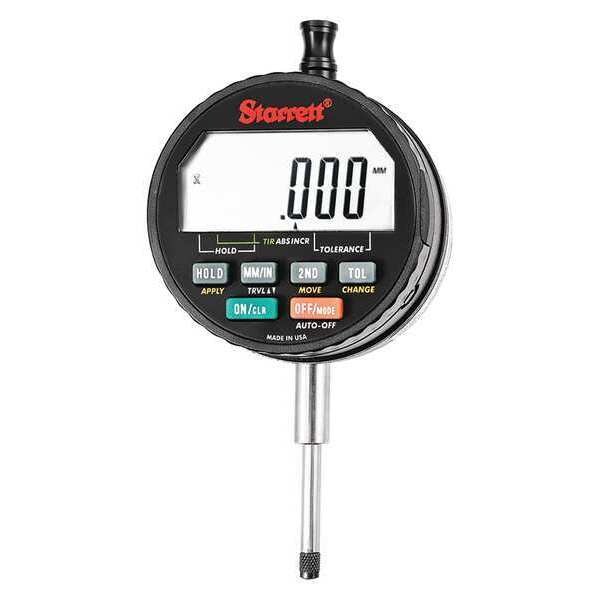

Starrett Electronic Indicator, 1"/25mm Range F2730IQM - main

Electronic Indicator, 1"/25mm Range

  • Mfr # F2730IQM

  • Zoro # G1591690

product price: $549.99
/ea
Free Shipping & Returns

Key Features

Series
Series 2700
Range
0 in to 1 in
Resolution
0.001 mm, 0.00005 in
Accuracy
+/- 0.0001 in
Bezel
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
F2730IQM
Zoro #
G1591690
UPC #
049659495133
Country of Origin
United States

Dimensions

Stem Thread Size
M2.5 x 0.45
Dimension Type
Inch/Metric
Dial Size
2.5 in
Contact Point Dia.
0.19 in
Stem Dia.
8 mm
Battery Size
CR2450
Contact Point Diameter
0.19 in
Stem Diameter
8 mm

Details

Item
Digital Indicator
Series
Series 2700
Range
0 in to 1 in
Resolution
0.001 mm, 0.00005 in
Accuracy
+/- 0.0001 in
Bezel
Yes
Long Form Calibration Certificate
No
Features
Rugged, Sealed Enclosures, Rotating Bezel, Data Collection and Hard Copy Documentation, Zero The Tool At Any Position of The Spindle Hold Button to Freeze Display, Plus or Minus Travel Direction, Auto-Off
Includes
8mm Stem
Variable Resolution
Yes
Maximum Measurement - mm
25 mm
Maximum Measurement - Inch
1 in
Back Type
Lug
Display Type
LCD
Includes Battery
Yes
Minimum Measurement - Inch
0 in
Minimum Measurement - mm
0 mm
SPC Output
Yes
Number of Indicators
1
Operation Type
Plunger
Data Output Type
Cabled
Compatible Wireless Transmitter
PT63300-4N
Included Certification
None
Bezel Type
No
Max. Measuring Force
1.471 N
Includes Case
No
Non-Magnetic
No
Compatible Data Output Cable
2700SCKB
Contact Point Shape
Curved
Shock Resistant
No
IP Rating
IP54
Inches Measured - Maximum
1 in
Body Color
Black
Bezel Lock
No
Millimeters Measured - Minimum
0 mm
Maximum Measuring Force
1.471 N
Millimeters Measured - Maximum
25 mm
Inches Measured - Minimum
0 in

Description

Digital Indicator, Series Series 2700, Resolution 0.001 mm, 0.00005 in, Accuracy +/- 0.0001 in, Range 0 in to 1 in, Bezel Yes, Long Form Calibration Certificate No, Features Rugged, Sealed Enclosures, Rotating Bezel, Data Collection and Hard Copy Documentation, Zero The Tool At Any Position of The Spindle Hold Button to Freeze Display, Plus or Minus Travel Direction, Auto-Off, Includes 8mm Stem
