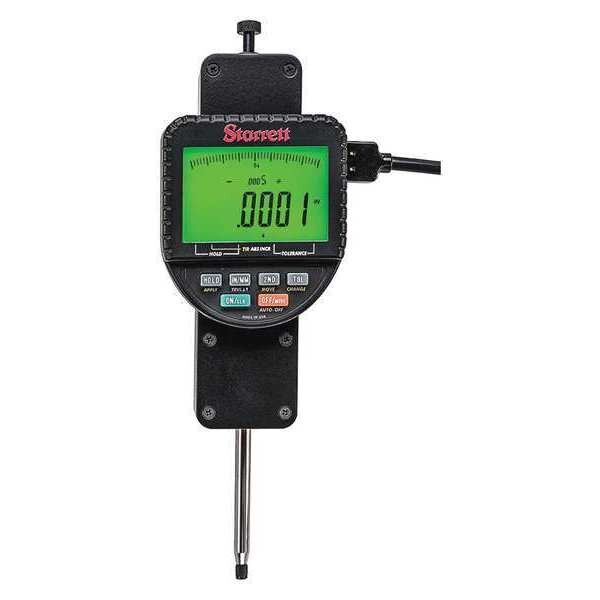

Starrett Electronic Indicator, 2"/50mm Range 2700-802 - main

Electronic Indicator, 2"/50mm Range

  • Mfr # 2700-802

  • Zoro # G1591812

product price: $989.99
/ea
Free Shipping & Returns

Key Features

Series
Series 2700
Resolution
0.01 mm, 0.0005 in
Accuracy
+/- 2
Bezel
Yes
Long Form Calibration Certificate
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
2700-802
Zoro #
G1591812
UPC #
049659727609
Country of Origin
United States

Dimensions

Dimension Type
Inch/Metric
Stem Dia.
0.375 in
Battery Size
USB/AC Powered
Dial Size
2.5 in
Stem Thread Size
#4-48 UNF
Contact Point Dia.
0.2 in
Contact Point Diameter
0.2 in
Stem Diameter
0.375 in

Details

Item
Backlit Digital Indicator with Replaceable Back
Series
Series 2700
Range
0 in to 2 in
Resolution
0.01 mm, 0.0005 in
Accuracy
+/- 2
Bezel
Yes
Long Form Calibration Certificate
No
Includes
3/8 in Stem
Features
Set Tolerances to Backlights, Inch and Metric Display, Analog Visual Display, Travel Reverse, Display Hold, Simple Data Collection, Floating Zero, High Storage Recall, Lock Combination
Variable Resolution
Yes
Display Type
Color LCD
Maximum Measurement - mm
50 mm
Minimum Measurement - Inch
0 in
Maximum Measurement - Inch
2 in
SPC Output
Yes
Minimum Measurement - mm
0 mm
Number of Indicators
1
Operation Type
Plunger
Contact Point Shape
Curved
Included Certification
None
Max. Measuring Force
1.471 N
Compatible Wireless Transmitter
PT63300-4N
Includes Battery
No
Compatible Data Output Cable
2700SCKB
IP Rating
IP54
Non-Magnetic
No
Includes Case
No
Bezel Type
No
Data Output Type
Cabled
Shock Resistant
No
Millimeters Measured - Maximum
50 mm
Back Type
Lug
Inches Measured - Minimum
0 in
Body Color
Black
Inches Measured - Maximum
2 in
Maximum Measuring Force
1.471 N
Millimeters Measured - Minimum
0 mm
Bezel Lock
No

Description

Backlit Digital Indicator with Replaceable Back, Series Series 2700, Resolution 0.01 mm, 0.0005 in, Accuracy +/- 2, Range 0 in to 2 in, Bezel Yes, Long Form Calibration Certificate No, Features Set Tolerances to Backlights, Inch and Metric Display, Analog Visual Display, Travel Reverse, Display Hold, Simple Data Collection, Floating Zero, High Storage Recall, Lock Combination, Includes 3/8 in Stem
