  13. Surface Tester, 10 to 200 micron Range

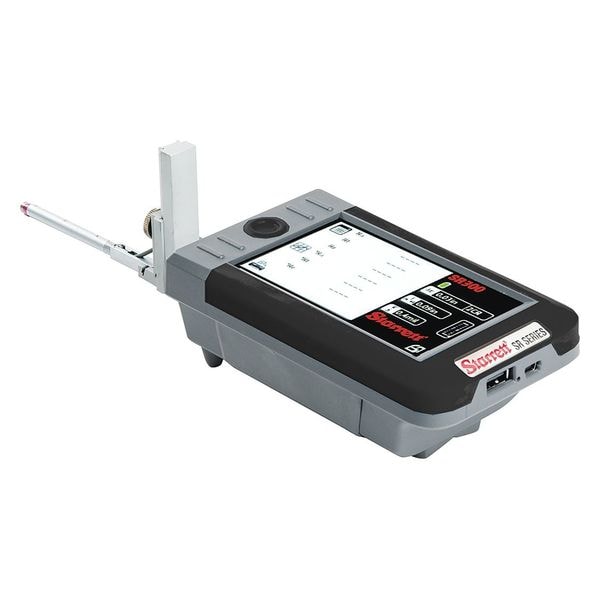

Starrett Surface Tester, 10 to 200 micron Range SR300 - main

Surface Tester, 10 to 200 micron Range

  • Mfr # SR300

  • Zoro # G1603819

product price: $4,725.99
/ea
Free Shipping & Returns

Key Features

Measuring Range
200 micrometers
Profile
Ra, Rz, Rt, Rp, Rmr, Rpc, Rsm, Rz1max, Rsk, Rda
Sampling Length (In.)
0.003 in, 0.01 in, 0.03 in, 0.1 in
Number of Sampling Spans
2
Tester Series
SR300
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SR300
Zoro #
G1603819
UPC #
049659210002
Country of Origin
United Kingdom

Dimensions

Sampling Length (In.)
0.003 in, 0.01 in, 0.03 in, 0.1 in
Cut Off Length (In.)
0.01 in, 0.031 in, 0.098 in
Arbitrary Length (In.)
0.010 to 0.490
Sampling Length
0.100
Display Screen Size
4.3 in
Probe Tip Radius
5 um
Transverse Cutoff Length
8 mm
Sampling Range Arbitrary Length
0.010 mm to 0.490 mm
Dimensions - Display Unit
81 mm H x 303 mm W x 25 mm D

Details

Item
Portable Surface Roughness Tester with Onboard Display
Measuring Range
200 micrometers
Profile
Ra, Rz, Rt, Rp, Rmr, Rpc, Rsm, Rz1max, Rsk, Rda
Number of Sampling Spans
2
Tester Series
SR300
Drive Unit
Skidded
For Use With
Safety, Aerospace, Automotive, Precision Bearings, General Manufacturing Testing
Analysis Graph
Profile Graph
Probe
5 micron
Detector
3 mN
Power Supply
9V Battery
Output
USB
Features
Large Screen Display, Unique Stylus Lift Mechanism For Total Flexibility, Many Application Specific Parameter Options, Comprehensive Selection Optional Accessories And Pickups, Long Traverse Length And Extended , Pickup Reach, Stores Of Up To 100 Readings
Includes
Reference Standard, Column And Stand, USB Charger, Support Stand, USB Thermal Printer, Thermal Paper, Pair Of 115 mm (5.85 in) V-Blocks, Precision Vice, Ball Joint Vice
Printer Functions
Graph
Minimum Operating Temperature - F
41 Degrees F
Memory Storage Capacity
Greater Than39,000 raw profiles, up to 100,000 results per batch ( Greater Than70 batches)
Includes Printer
Yes
Detector Measuring Force
3 mN
Probe Sensor Type
Piezoelectric; Inductive
Display Functions
Menu, Device Icons, Graph, Battery, Brightness, Internal Memory, External Memory, Rotate, Screenshot, Battery Level, Caliberation, Stylus Return, Cut-off, Set Zero, Filter Type, Measurement Length, Range, Parameters, Units, Storage, New Batch, Keyboard, View Batch, Delete Batch, Print Batch, Print, Language, Sleep Timer
Drive Unit Principle
Skid
Digital Filter Type
2CR, Gaussian
SPC Output
Yes
Measuring Range Rz
0.1 micronm; 0.02 micronm; 0.01 micronm
Measuring Range (mm)
200, 100, 10 mm
Display Languages
English, French, German, Italian, Spanish
Operating Position
Horizontal, Vertical, Upside Down
Maximum Operating Temperature - F
104 Degrees F
Data Output Type
Cabled
Compatible Wireless Transmitter
Bluetooth
Minimum Operating Temperature - C
5 Degrees C
Profile Resolution
10 nm
Number of Parameters Measured
14
Display Type
LCD
Calibration Functions
Automated Software Calibration Routine
Includes Case
No
Measuring Condition Standards
ISO4287, ASME, JIS
Operating Temperature Range
41 Degrees F to 104 Degrees F / 5 Degrees C to 40 Degrees C
Maximum Operating Temperature - C
40 Degrees C
Measuring Range (In.)
0.01 in to 0.49 in
Measuring Range Ra
200 micronm; 100 micronm; 10 micronm
Data Output Connection Type
USB
Compatible Memory Card
USB Stick
Parameters Measured
Pa, Pp, Pt, Pv, Pz, Ra, Rku, Rp, Rq, Rsk, Rt, Rv, Rz, Rz1Max
Probe Positions
Axial or 90 degrees
IP Rating
Not Rated
Printer Paper Type
Thermal
Case Type
Carrying Case
Includes Battery
Yes
Product Type
Portable Surface Roughness Tester with Onboard Display
Operating Temperature - Minimum
41 Degrees F
Operating Temperature - Maximum
104 Degrees F

Description

Portable Surface Roughness Tester with Onboard Display, Features Large Screen Display, Unique Stylus Lift Mechanism For Total Flexibility, Many Application Specific Parameter Options, Comprehensive Selection Optional Accessories And Pickups, Long Traverse Length And Extended , Pickup Reach, Stores Of Up To 100 Readings, Measuring Range 200 micrometers, Profile Ra, Rz, Rt, Rp, Rmr, Rpc, Rsm, Rz1max, Rsk, Rda, Analysis Graph Profile Graph, Cut Off Length (In.) 0.01 in, 0.031 in, 0.098 in
