Shop STARRETT

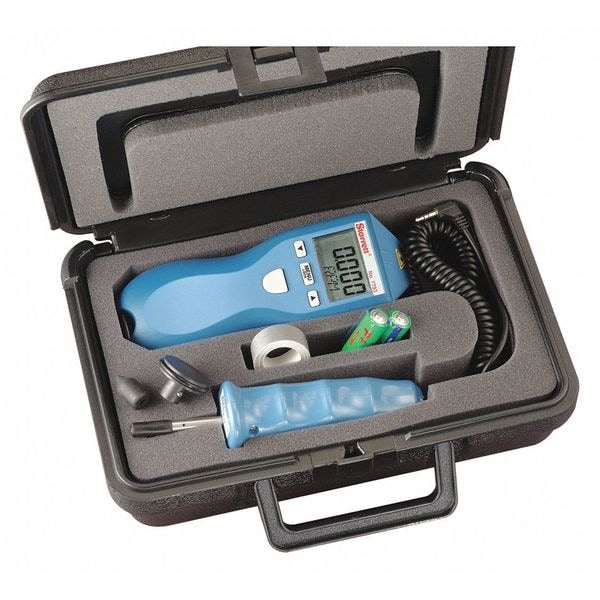

Tachometer Laser Pocket Kit W/Case

  • Mfr # S7793Z

  • Zoro # G1439116

product price:
$
878.99
/ea
Free Shipping & Returns

Key Features

Includes
10 cm Linear Contact Wheel, 5 ft Reflective Tape, Contact Tips, Carrying Case, RCA
RPM Accuracy
+/-0.05%
Features
Accepts Remote Contact Assembly, Accepts Remote Sensors (Optional), Auto Ranging/Fixed Decimal (User Selectable), English and Metric Rates, Low Battery Indicator, On-Target Alerts, Rubberized Housing, Tripod Mounting Bushing, TTL Pulse Output
RPM Resolution
0.001 RPM
Contact / Noncontact
Contact and Noncontact
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
S7793Z
Zoro #
G1439116
UPC #
-
Country of Origin
United States

Dimensions

Battery Size
9V

Details

Item
Tachometer
Includes
10 cm Linear Contact Wheel, 5 ft Reflective Tape, Contact Tips, Carrying Case, RCA
RPM Accuracy
+/-0.05%
Features
Accepts Remote Contact Assembly, Accepts Remote Sensors (Optional), Auto Ranging/Fixed Decimal (User Selectable), English and Metric Rates, Low Battery Indicator, On-Target Alerts, Rubberized Housing, Tripod Mounting Bushing, TTL Pulse Output
RPM Resolution
0.001 RPM
Contact / Noncontact
Contact and Noncontact
Display
5 digit LCD
Memory
Last/Min/Max
Standards
Class 2 IEC60825-1 Ed 1.2 2001-8, FDA
Contact RPM Range
0.5 to 20,000
Speed (FPM)
0.16 to 6561
Speed (M/Min)
0.050 to 2000
Speed Accuracy
+/-0.01% of Reading
Light Source
Laser
Indicator
Lock, Low Battery, On Target, Times Ten
Temperature Range
130 to 930 Degrees F
Calibration Certificate
NIST
Working Angle
+/-70 Degrees
Working Distance
25 ft
Noncontact RPM Range
5 to 200,000
Maximum Non-Contact RPM
200,000 RPM
Minimum Contact RPM
0.5 RPM
Calibration Certificate Type
NIST
Rotational Speed Measuring Units
cm/min, ft/min, in/min, m/min, RPM, yd/min
Maximum Contact RPM
20,000 RPM
Maximum Non-Contact Distance
25 ft
Contact Type
Contact, Non-Contact
Minimum Non-Contact Distance
2 in
Minimum Operating Temperature
0 Degrees F
Maximum Operating Temperature
100 Degrees F
Batteries Included
Yes
Minimum Non-Contact RPM
5 RPM
Battery Voltage
9V
Digital Display Screen Type
LCD
Number of Digits
5

Description

Tachometer, RPM Accuracy +/-0.05 Percent, RPM Resolution 0.001 RPM, Maximum Contact RPM 20,000 RPM, Minimum Contact RPM 0.5 RPM, Maximum Non-Contact RPM 200,000 RPM, Minimum Non-Contact RPM 5 RPM, Maximum Non-Contact Distance 25 ft, Minimum Non-Contact Distance 2 in, Calibration Certificate Type NIST, Includes 10 cm Linear Contact Wheel, 5 ft Reflective Tape, Contact Tips, Carrying Case, RCA
