Shop STEELMAX

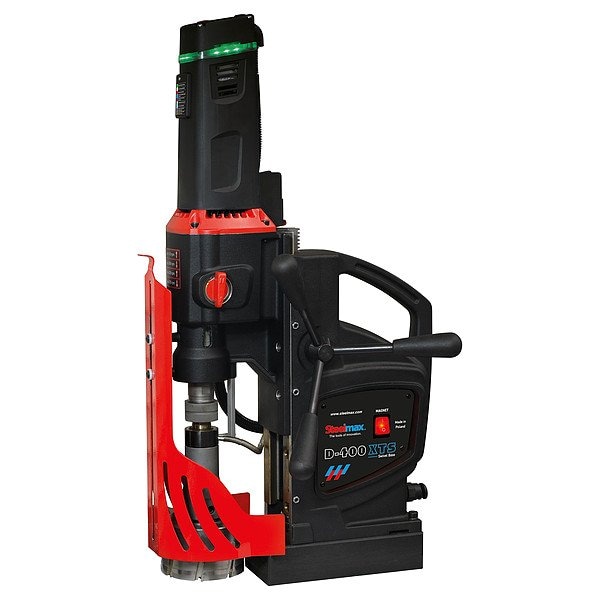

DrillPress, Weldon, 3/4in, 19A, 570RPM

  • Mfr # SM-D-400-XTS

  • Zoro # G910881727

product price:
$
5,204.99
/ea
Additional $135.00 delivery surcharge applies per item.
See details

Key Features

Voltage
115V AC
Spindle Taper
MT3
Drill Travel
9 in
Magnet Type
Electric
Overall Height
32 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SM-D-400-XTS
Zoro #
G910881727
UPC #
848118006671
Country of Origin
Poland

Dimensions

Overall Height
32 in
Chuck Size
3/4 in
Overall Width
13 in
Overall Length
32 in
Cord Length
5 ft
Cutting Depth - Maximum
4 in
Wire Rope Length
32 in
Length
32 in

Details

Item
Drill Press
Voltage
115V AC
Spindle Taper
MT3
Drill Travel
9 in
Magnet Type
Electric
Includes
drilling machine, plastic case, coolant bottle, safety strap, set of tools
Tool Weight
111 lb
Series
steelmax mag drill press
Reversible
Forward/Reverse
Features
360 deg Visual Monitoring System Indicates Current Condition of the Drill and Gives Safety and Diagnostic Information, E.g. Worn Brushes, 4-Speed Gear with Continuous Speed Adjustment, Drilling with both TCT and HSS Cutters and Twist Drill Bits from Small Through Large Diameters, Innovative Smart Magnet with Reduced Weight, Innovative Swivel Base Enables Local Movement of Machine for Precise Hole Positioning, Intelligent Speed Control System Maintains Stable, Most Powerful Motor in its Class (Among MT3 Drills), Overload and Overheat Protection, Rigid Design Extends Tool Life, Speed Regardless of Load Changes, Tapping of through and Blind Holes with Intelligent Load Control
Power Source
Corded
Chuck Style
Weldon
Tool Style
Large
Coolant System
Yes
Magnetic Force
4,045 lbf
Tapping Compatible
Tapping Compatible
Minimum Working Speed
75 RPM
Application
Hole Cutting and Tapping
Maximum Working Speed
570 RPM
Maximum Spindle Speed
570 RPM
Drilling Capacity in Stainless Steel
5 in
Spindle Travel
6 in
Drilling Capacity in Steel
5 in
Minimum Core Bit Compatibility
5/16 in
Plug Type
Three-Prong
Minimum Spindle Speed
75 RPM
Power Down Feed Included
No
Tapping Capacity in Steel
1 1/4
Base Type
Fixed
Drilling Capacity in Aluminum
1 1/4 in
Current
19 A
Variable Speed
Yes
Maximum Core Bit Compatibility
5 in
Number of Spindle Speeds
Continuous
Number of Pieces
8
Tapping Capacity in Aluminum
1 1/4
Phase
Single-Phase
Tapping Capacity - Maximum
1 1/4 in
Carbide Annular Cutter Capacity - Maximum
5 in
Tool Series
Steelmax Mag Drill Press
Twist Drill Capacity - Maximum
1 1/4 in
Reaming Capacity - Maximum
1 1/4 in
High Speed Steel Annular Cutter Capacity - Maximum
5 in
Power Source - TS Only
Corded
Power Source - old
Corded

Description

Drill Press, Magnet Type Electric, Variable Speed Yes, Drilling Capacity in Steel 5 in, Drilling Capacity in Wood Not Applicable, Drilling Capacity in Cast Iron Not Applicable, Drill Travel 9 in, Maximum Spindle Speed 570 RPM, Minimum Spindle Speed 75 RPM, Current 19 A, Voltage 115/230V AC, Phase Single-Phase, Base Type Fixed, Spindle Taper MT3, Chuck Size 3/4 in, Chuck Style Weldon, Drill Point Pressure Not Applicable, Power Down Feed Included No, Coolant System Yes, Tool Style Large
