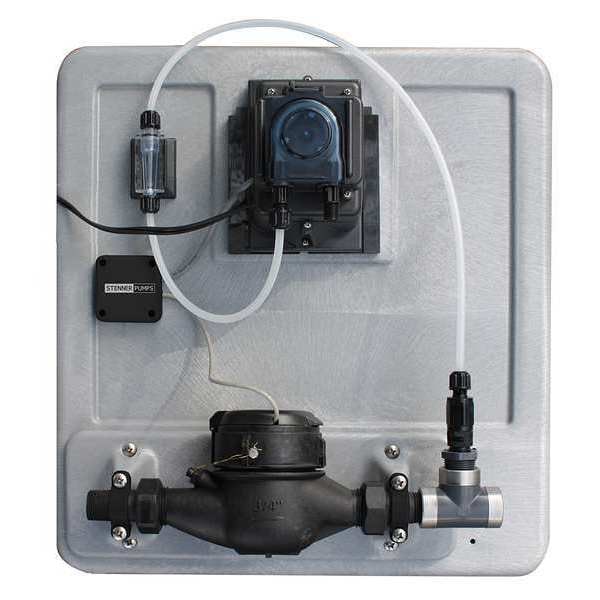

Stenner Econ FP Meter Panel System 4.5GPD 80Psi 3/4" meter 2ppg E20PHF81S725G1 - main

Econ FP Meter Panel System 4.5GPD 80Psi 3/4" meter 2ppg

  • Mfr # E20PHF81S725G1

  • Zoro # G7959716

product price: $1,077.99
/ea
Free Shipping & Returns

Key Features

Voltage
120/60Hz
Power Cord
10 ft
Body Material
Polycarbonate
Max. Flow (GPD)
4.5
Tank Material
Polyethylene, Polypropylene, Stainless Steel, Viton
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E20PHF81S725G1
Zoro #
G7959716
UPC #
-
Country of Origin
United States

Dimensions

Cord Length
10 ft

Details

Voltage
120/60Hz
Power Cord
10 ft
Body Material
Polycarbonate
Max. Flow (GPD)
4.5
Tank Material
Polyethylene, Polypropylene, Stainless Steel, Viton
Self-Priming
Yes
Min. Flow Rate (GPD)
0.45
Includes
Grommets, Lid, Screws
Standards
CE Certified, cULus Listed
Max. Flow (gpd)
4.5 gpd
Tubing Material
Santoprene
Tank (Gal.)
7 1/2 gal, 15 gal, 30 gal
Includes Pump
E20PHF81S5
Max. Pressure (PSI)
80 psi
Seals and O-Rings
FDA Approved, Santoprene
Accuracy (%)
+/-2%
Suction Lift (Ft.)
25 ft
Head and Fitting Material
NSF61 Listed, Polycarbonate, Polypropylene or Type 1 Rigid PVC
Item
Pump Mounted Panel System
Max. Viscosity
100 CPS
Turn Down Ratio
10:1
Pulse Rate
2 pulses/gal
Nameplate Voltage
120V AC
Included Pump Manufacturing Number
E20PHF81S5
Tank Capacity
30 gal
System Pressure (Maximum)
80 psi
Seal Material
Santoprene
Flow Rate (Minimum)
0.45 gpd
System Flow Rate (Maximum)
4.5 gpd
Housing Material
Polycarbonate
Suction Lift (Maximum)
25 ft
Fitting Material
Polycarbonate, Polypropylene
Priming
Self-Priming
Accuracy
+/-2%
Viscosity (Maximum)
100 cps

Description

Pump Chemical Metering System, Accuracy +/-2 Percent, Flow Rate (Minimum) 0.45 gpd, Housing Material Polycarbonate, Includes Grommets, Lid, Screws, Nameplate Voltage 120V AC, Priming Self-Priming, System Flow Rate (Maximum) 4.5 gpd, System Pressure (Maximum) 80 psi, Tubing Material Santoprene, Turn Down Ratio 10:1, Viscosity (Maximum) 100 cps, Tank Capacity 30 gal, Fitting Material Polycarbonate, Polypropylene, Pulse Rate 2 pulses/gal, Cord Length 10 ft
