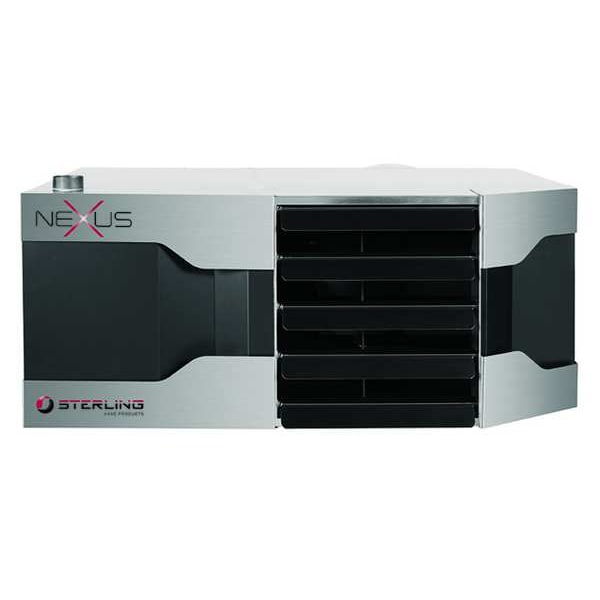

Sterling Gas Wall and Ceiling Unit Heater, NG, 100,000, 1,616 cfm, Direct, Propeller, 1/2 in 11HU100A1NS1110B - main

Gas Wall and Ceiling Unit Heater, NG, 100,000, 1,616 cfm, Direct, Propeller, 1/2 in

  • Mfr # 11HU100A1NS1110B

  • Zoro # G9082919

original price:  $4,581.99 , new price: $4,232.99 , 7 percent off
new price:  $4,232.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.

Key Features

BtuH Input
100,000
Gas Type
NG
Combustion Type
Field Convertible
BtuH Output
96,000
Gas Connection
1/2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11HU100A1NS1110B
Zoro #
G9082919
UPC #
700202000760
Country of Origin
United States

Dimensions

Height
18 3/4 in
Manufacturers Warranty Length
10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr
Flue Dia.
2 in
Indoor Air Discharge Width
15 in
Burner Air Inlet Size
2 in
Indoor Air Discharge Height
15 7/8 in
Width
42 13/16 in
Depth
38 in
Overall Width
42 13/16 in
Gas Connection Size
1/2 in
Overall Depth
38 in
Fan Diameter
16 in
Mounting Hole Diameter
3/4 in
Mounting Height
8 ft to 20 ft
Flue Diameter
2 in
Overall Height
18 3/4 in
Overall Dimensions - H x W x D
18 3/4 in x 42 13/16 in x 38 in

Details

BtuH Input
100,000
Gas Type
NG
Combustion Type
Field Convertible
BtuH Output
96,000
Gas Connection
1/2 in
Fan Type
Propeller
Air Flow
1,616 cfm
Item
Gas Wall and Ceiling Unit Heater
Full Load Amps
10.3 A
Heater Voltage
115 V AC
Ignition System
Direct Spark
Air Temp. Rise
55 Degrees F
O.C. Mounting
27 15/16 in
Hz
60
Vent
Power
Drive Type
Direct
Standards
ETL, ETLc Certified
Primary Heat Exchanger Material
Tri-Metal, Stainless Steel, Brass, Aluminum
Green Environmental Attribute
Commercial Gas Heater Has Thermal Efficiency Rating = 0.90
Air Temperature Rise
55 Degrees F
Air Flow Direction
Horizontal
Off Center Mounting
27 15/16 in
Heating Method
Fan Forced
Maximum Amperage
10.3 A
Heat Exchanger Material
Stainless Steel
Heat Exchanger Gauge
20 ga
Ignition Type
Direct Spark
Thermostat Included
No
Gas Connection Type
NPT, Male
Includes
Adjustable Louvers
Fuel Type, Combustion Type
Natural Gas, Field Convertible
Heating Capacity Input
100,000 BtuH
Fuel Type
Natural Gas
Heat Output
96,000 BtuH
Thermal Efficiency Rating
96%
Product Type
High-Efficiency Unit Heater
Frequency
60 Hz
Motor Type
PSC
Features
Furnace Type-Right Side Access, Direct Spark Gas Control-Modulating W/Outside Air Reset (Master)
Motor Speed
1,500 RPM
Heating Capacity Output
96,000 BtuH
Mounting Location
Ceiling
Phase
1
Profile Type
Low
Vent Type
Power

Description

Gas Wall and Ceiling Unit Heater, Gas Type NG, Combustion Type Field Convertible, Fan Type Propeller, BtuH Input 100,000, BtuH Output 96,000, 1,616 cfm Air Flow, 10.3 A Full Load Amps, Gas Connection 1/2 in, Flue Dia. 2 in, O.C. Mounting 27 15/16 in, Height 18 3/4 in, Width 42 13/16 in, Depth 38 in, Indoor Air Discharge Height 15 7/8 in, Indoor Air Discharge Width 15 in, Heater Voltage 115 V AC, 60 Hz, Air Temp. Rise 55 Degrees F, Ignition System Direct Spark
