  13. Gas Wall and Ceiling Unit Heater, NG, 400,000, 6,464 cfm, Direct, Propeller, 3/4 in

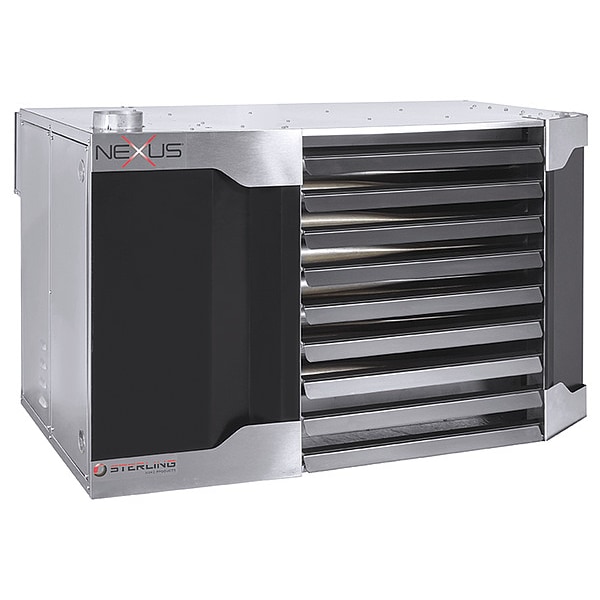

Sterling Gas Wall and Ceiling Unit Heater, NG, 400,000, 6,464 cfm, Direct, Propeller, 3/4 in 11HU400A1NS1110B - main

Gas Wall and Ceiling Unit Heater, NG, 400,000, 6,464 cfm, Direct, Propeller, 3/4 in

  • Mfr # 11HU400A1NS1110B

  • Zoro # G9083573

original price: $8,840.99
10% off
new price: $7,956.99
/ea
Item requires special delivery charges. A $150.00 per item surcharge will be applied.

Key Features

BtuH Input
400,000
Gas Type
NG
Combustion Type
Field Convertible
BtuH Output
384,000
Gas Connection
3/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
11HU400A1NS1110B
Zoro #
G9083573
UPC #
700202000791
Country of Origin
United States

Dimensions

Height
34 7/8 in
Depth
42 in
Indoor Air Discharge Width
26 in
Width
54 13/16 in
Burner Air Inlet Size
4 in
Indoor Air Discharge Height
32 1/8 in
Manufacturers Warranty Length
10 yr on Heat Exchanger, Burners, And Flue Collector. All Other Parts are 1 yr
Flue Dia.
4 in
Flue Diameter
4 in
Overall Dimensions - H x W x D
34 7/8 in x 54 13/16 in x 42 in
Fan Diameter
18 in
Overall Depth
42 in
Mounting Height
8 ft to 20 ft
Overall Width
54 13/16 in
Overall Height
34 7/8 in
Mounting Hole Diameter
3/4 in
Gas Connection Size
3/4 in

Details

BtuH Input
400,000
Gas Type
NG
Combustion Type
Field Convertible
BtuH Output
384,000
Gas Connection
3/4 in
Fan Type
Propeller
Air Flow
6,464 cfm
Item
Gas Wall and Ceiling Unit Heater
Full Load Amps
31.2 A
O.C. Mounting
41 3/4 in
Heater Voltage
115 V AC
Standards
ETL, ETLc Certified
Ignition System
Direct Spark
Primary Heat Exchanger Material
Tri-Metal, Stainless Steel, Brass, Aluminum
Hz
60
Air Temp. Rise
55 Degrees F
Vent
Power
Drive Type
Direct
Green Environmental Attribute
Commercial Gas Heater Has Thermal Efficiency Rating = 0.90
Maximum Amperage
31.2 A
Heat Output
384,000 BtuH
Heat Exchanger Gauge
20 ga
Features
Furnace Type-Right Side Access, Direct Spark Gas Control-Modulating W/Outside Air Reset (Master)
Profile Type
Standard
Gas Connection Type
NPT, Male
Includes
Adjustable Louvers
Fuel Type
Natural Gas
Fuel Type, Combustion Type
Natural Gas, Field Convertible
Motor Speed
1,625 RPM
Vent Type
Power
Air Temperature Rise
55 Degrees F
Heating Capacity Output
384,000 BtuH
Off Center Mounting
41 3/4 in
Heating Capacity Input
400,000 BtuH
Mounting Location
Ceiling
Product Type
High-Efficiency Unit Heater
Frequency
60 Hz
Thermal Efficiency Rating
96%
Ignition Type
Direct Spark
Motor Type
PSC
Heating Method
Fan Forced
Thermostat Included
No
Heat Exchanger Material
Stainless Steel
Air Flow Direction
Horizontal
Phase
1

Description

Gas Wall and Ceiling Unit Heater, Gas Type NG, Combustion Type Field Convertible, Fan Type Propeller, BtuH Input 400,000, BtuH Output 384,000, 6,464 cfm Air Flow, 31.2 A Full Load Amps, Gas Connection 3/4 in, Flue Dia. 4 in, O.C. Mounting 41 3/4 in, Height 34 7/8 in, Width 54 13/16 in, Depth 42 in, Indoor Air Discharge Height 32 1/8 in, Indoor Air Discharge Width 26 in, Heater Voltage 115 V AC, 60 Hz, Air Temp. Rise 55 Degrees F, Ignition System Direct Spark
