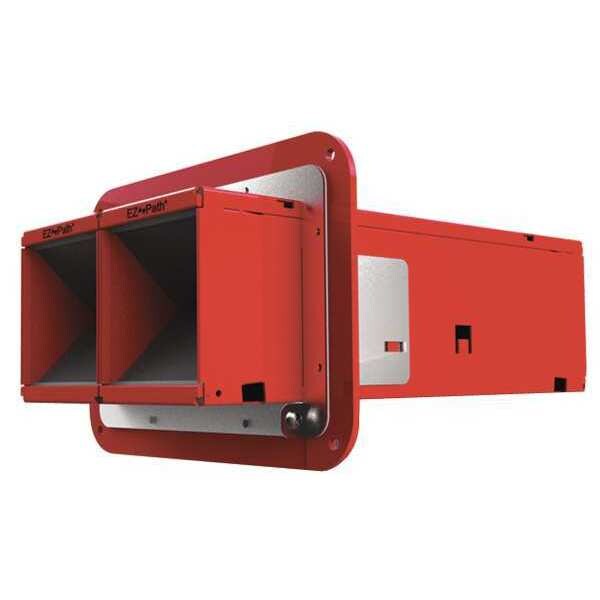

Fire Barrier Pathway, Rectangle, 11" W, Red
Mfr # MDM400D
Zoro # G7883386
product price:Â $2,298.99
/ea
Free Shipping & Returns
Key Features
Color
Red
Material
Steel
Fire Rating
Up to 1 hr
Standards
Tested to IMO A.754 FTP, American Bureau of Shipping, US Coast Guard, Bureau Veritas, 1408/14, Class A0-A60, B0-B30, H0-H120 Bulkheads and Decks
Expansion Temperature
160 Degrees C
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- MDM400D
- Zoro #
- G7883386
- UPC #
- 730573400487
- Country of Origin
- United States
Dimensions
- Overall Length
- 14 in
- Overall Width
- 11 in
- Overall Height
- 7.61 in
- Width
- 11 in
- Wire Rope Length
- 14 in
- Length
- 14 in
Details
- Item
- Fire Barrier Pathway
- Color
- Red
- Material
- Steel
- Fire Rating
- Up to 1 hr
- Standards
- Tested to IMO A.754 FTP, American Bureau of Shipping, US Coast Guard, Bureau Veritas, 1408/14, Class A0-A60, B0-B30, H0-H120 Bulkheads and Decks
- Expansion Temperature
- 160 Degrees C
- Shape
- Rectangular
- For Use On
- Cable
- Minimum Service Temperature
- -23 Degrees C
- Body Material
- Steel
- Body Material Finish
- Galvanized
- Maximum Service Temperature
- 49 Degrees C
- Expansion Volume
- 800%
- Paintable
- Yes
- Cable Loading Area
- 82 sq cm
- Fire Resistance Type
- Intumescent
- Firestop Type
- Pipe Collars For Passing Through Walls
Description
Fire Barrier Pathway, Cable Loading Area 82 sq cm, Fire Rating Up to 1 hr, For Use On Cable, Overall Height 7.61 in, Overall Length 14 in, Overall Width 11 in, Shape Rectangular, Body Material Steel, Body Material Finish Galvanized, Color Red, Expansion Temperature 160 Degrees C, Expansion Volume 800 Percent, Fire Resistance Type Intumescent
