Product Information
MFR #
43815-0016
Zoro #
G8110322
UPC #
-
Country of Origin
United States
Dimensions
Width
6.55"
Height
10.80"
Depth
2.81"
Details
Item

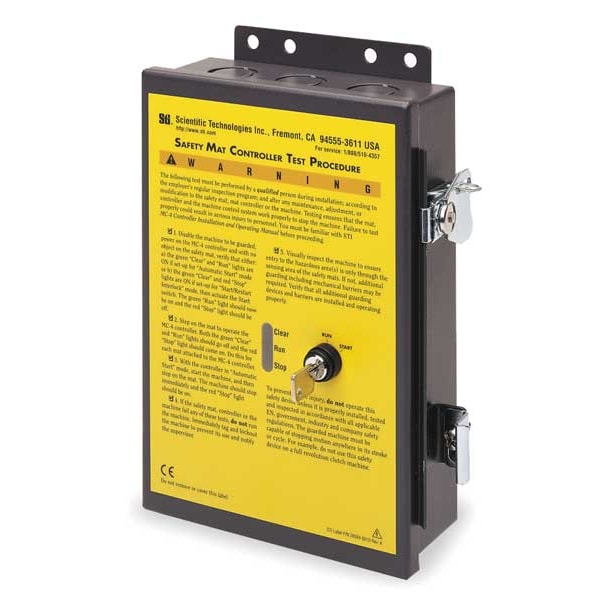

Safety Mat Controller
Safety Output Ratings
6 A @ 230V AC, 2A Inductive @ 24V DC, 6A Resistive @ 24V DC
Number of Inputs
6
Detection Zones
1
Mounting
Wall
Enclosure Material
14 Ga. Steel
NEMA Rating
4, 12
IP Rating
65
Input Power
100 to 240VAC
Standards
CE,UL
Safety Output Configuration
2NO/2NC
Response Time
30 msec
For Use With
Mfr. UM Series Safety Mat
Max. Wattage
1500W
Max. Switching Voltage
240VAC/24VDC
Operating Temp.
32 Degrees to 131 Degrees F
Description
Safety Mat Controller, Input Power 100 to 240VAC, Safety Output Configuration 2NO/2NC, Number of Inputs 6, 1 Detection Zones, Max. Switching Voltage 240VAC/24VDC, Wall Mounting, NEMA Rating 4, 12, IP Rating 65, Max. Wattage 1500W, Enclosure Material 14 Ga. Steel, Safety Output Ratings 6 A @ 230V AC, 2A Inductive @ 24V DC, 6A Resistive @ 24V DC, For Use With Mfr. UM Series Safety Mat, Height 10.80 In., Width 6.55 In., Depth 2.81 In., Operating Temp. 32 Degrees to 131 Degrees F
