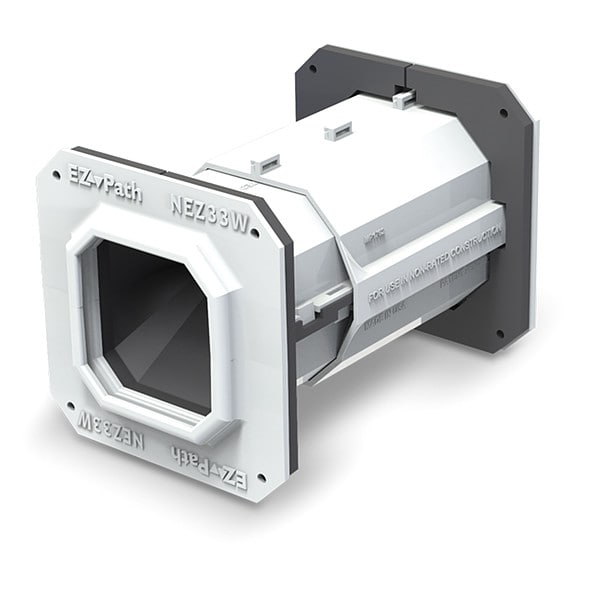

Smoke and Acoustical Pathway, Square
Mfr # NEZ33-W
Zoro # G4766890
product price: $75.49
/ea
Free Shipping & Returns
Key Features
Color
White
Material
Thermoplastic
Fire Rating
Not Rated
Standards
L Ratings Tested, OSHA 29 CFR 1910.1200, STC/ASTME90-09, UL2043
Usage Location
Non-Rated Walls
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
NEZ33-W
Zoro #
G4766890
UPC #
730573111666
Country of Origin
United States
Dimensions
Overall Length
6.25 in
Overall Height
6.5 in
Overall Width
6.25 in
Details
Item
Smoke and Acoustical Pathway Device
Color
White
Material
Thermoplastic
Fire Rating
Not Rated
Standards
L Ratings Tested, OSHA 29 CFR 1910.1200, STC/ASTME90-09, UL2043
Usage Location
Non-Rated Walls
Shape
Square
Includes
(2) Device Halves, (8) Mounting Parts, (8) Screws, Labels
Features
Allows for Moves, Adds, and Changes, Self Sealing Design Providing STC and L Ratings
For Use On
Cable, Cable Trays
Includes Mounting Hardware
Yes
Maximum Service Temperature
130 Degrees F
Fire Resistance Type
Smoke & Acoustical
Leakage Rating
Less Than 1 cfm (0% Visual Fill), Less Than 2.5 cfm (100% Visual Fill)
Body Material
Thermoplastic
Minimum Service Temperature
-30 Degrees F
Mount Type
Ceiling, Floor, Wall
Inner Material
Silicone Rubber
Cable Loading Area
6.7 sq in
Paintable
Yes
Firestop Type
Pass Through Devices for Walls and Ceilings
Description
Smoke and Acoustical Pathway Device, Cable Loading Area 6.7 sq in, Fire Rating Not Rated, For Pipe Size Not Applicable, For Use On Cable, Cable Trays, Includes (2) Device Halves, (8) Mounting Parts, (8) Screws, Labels, Includes Mounting Hardware Yes, Outside Diameter Not Applicable, Overall Height 6.5 in, Overall Length 6.25 in, Overall Width 6.25 in, Shape Square, Usage Location Non-Rated Walls, Body Material Thermoplastic, Color White
