  11. Hydrogen Gas Detector, Gas Type H2
No Product Image Available

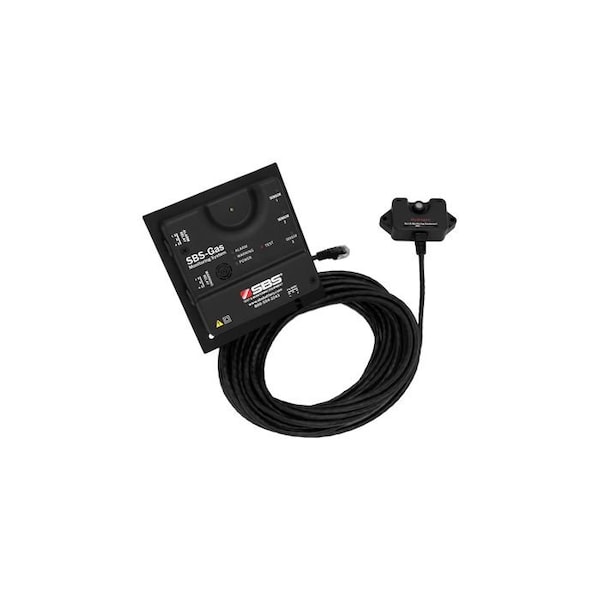

Hydrogen Gas Detector, Gas Type H2

  • Mfr # SBS-H2

  • Zoro # G308999829

product price: $1,256.99
/ea
Free Shipping & Returns

Key Features

For Use With
Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels
Gas Detected
Hydrogen
Sensor Range
1% and 2% / 25% and 50% LEL
Operating Temp. Range
32 Degrees to 122 Degrees F
Features
Modular Design for Optimal Placement of Sensor(S), Strobe Light for Visual Alerts
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SBS-H2
Zoro #
G308999829
UPC #
-
Country of Origin
United States

Dimensions

Height
5 in
Width
5 in
Depth
1 1/2 in
Overall Width
4.7 in
Overall Height
4.7 in
Overall Depth
1.2 in

Details

Item
Hydrogen Gas Detector
For Use With
Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels
Gas Detected
Hydrogen
Sensor Range
1% and 2% / 25% and 50% LEL
Operating Temp. Range
32 Degrees to 122 Degrees F
Features
Modular Design for Optimal Placement of Sensor(S), Strobe Light for Visual Alerts
Gas Type
H2
Includes
25 ft. Cable, Hydrogen Sensor, Main Control
Standards
CAN/CSA-C22.2 No. 61010-1-12, cNemkous, NRTL/C Certified: UL Std. No. 61010-1
Status Indicator
LED
Power Required
12 to 48 V DC, 120 V AC, 220 Vac
NEMA Rating
Type 1
Housing Color
Black
Product Type
Fixed Gas Detector
IP Rating
IP10
Color
Black
Number of Channels
0
Display
LED
Alarm Type
Audible and Visual
Connection
Plugs/Terminals
Alarm Volume Level
85 dB @ 10 ft
NEMA Enclosure Rating
1
Alert Type
Sound
Operating Humidity - Maximum
85 %
Display Screen Type
LED
Output Channels
0
Operating Humidity - Minimum
20 %
Operating Temperature - Maximum
122 Degrees F
Measurement Range
Hydrogen (1%), Hydrogen (2%/25%), Hydrogen (50% LEL)
Input Current
125 mA @ 185 to 242V AC (Terminal J8), 250mA @ 93 to 121V AC (Terminal J8), 600 mA @ 9 to 58V DC (Terminal J9)
Operating Temperature - Minimum
32 Degrees F
Operating Frequency
50/60 Hz
Number of Gases Detected
1
Voltage
12 to 48V DC, 9 to 58V DC
Operating Voltage
12 to 48V DC, 9 to 58V DC

Description

Hydrogen Gas Detector, For Use With Building Automation Systems, Burglary Alarm Panels, Fire Alarm Panels, Gas Detected Hydrogen, Standards CAN/CSA-C22.2 No. 61010-1-12, cNemkous, NRTL/C Certified: UL Std. No. 61010-1, Includes 25 ft. Cable, Hydrogen Sensor, Main Control, Product Type Fixed Gas Detector, Mounting Location Wall, Operating Temperature - Minimum 32 Degrees F, Operating Temperature - Maximum 122 Degrees F, Number of Gases Detected 1, NEMA Enclosure Rating 1, IP Rating IP10
