Shop STRUTHERS-DUNN

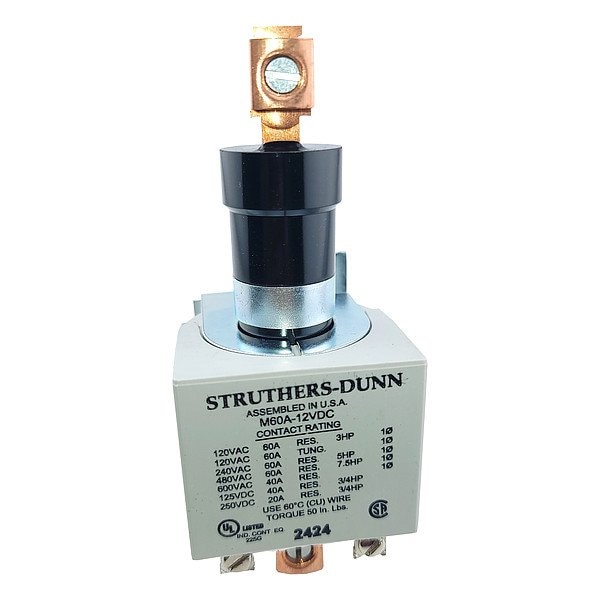

MercuryDisplacementContactor, 1NO, 12VDC

  • Mfr # M60A-12VDC

  • Zoro # G108389691

product price:
$
189.99
/ea
Free Shipping & Returns

Key Features

Contact Form
1NO
Number of Poles
1
Contact Amp Rating (Resistive)
60 A
Coil Volts
12 V DC
Depth
2.31 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M60A-12VDC
Zoro #
G108389691
UPC #
-
Country of Origin
Multiple

Dimensions

Depth
2.31 in
Height
5 in
Width
2.02 in
Overall Depth
2.31 in
Overall Height
5.06 in
Overall Width
2.02 in

Details

Item
Mercury Displacement Contactor
Contact Form
1NO
Number of Poles
1
Contact Amp Rating (Resistive)
60 A
Coil Volts
12 V DC
HP @ 1 Phase - 120V
3 hp
Coil VA Rating
7 to 28 VA
Standards
CSA, UL Listed
HP @ 3 Phase - 600V
10 hp
Mounting Position
Vertical Within 10 Degrees
Contact Material
Liquid Mercury
Features
Contact Resistance is Among the Lowest Available for any Electromechanical Relay, Sealed Tubes Containing Liquid Mercury Assure Contact Surfaces are Freshly Replenished with Every Contact Movement
HP @ 3 Phase - 240V
7 1/2 hp
HP @ 1 Phase - 240V
5 hp
HP @ 3 Phase - 480V
10 hp
Maximum Operating Temperature
74 Degrees F
Coil Voltage
12V DC
Full Load Current - Resistive
60 A
Series
M60
Horsepower @ Single Phase - 240V AC
10 hp
Horsepower @ Three Phase - 240V AC
7 1/2 hp
Minimum Operating Temperature
-34 Degrees F
Coil Power
3 to 9 W, 7 to 28 VA
Horsepower @ Three Phase - 480V AC
10 hp
Mounting Style
Surface
Horsepower @ Three Phase - 600V AC
10 hp
Terminal Connection Type
Screw Terminals
Mechanical Operating Durability
5,000,000
Horsepower @ Single Phase - 120V AC
5 hp
Mounting Postion
Vertical
Electrical Operating Durability
250,000

Description

Mercury Displacement Contactor, Coil Voltage 12V DC, Contact Form 1NO, Contact Material Liquid Mercury, Number of Poles 1, Mounting Style Surface, Horsepower @ Three Phase - 600V AC 10 hp, Horsepower @ Three Phase - 480V AC 10 hp, Horsepower @ Single Phase - 240V AC 10 hp, Horsepower @ Single Phase - 120V AC 5 hp, Horsepower @ Three Phase - 240V AC 7 1/2 hp, Terminal Connection Type Screw Terminals, AC Full Load Current - Inductive @ Single Phase Not Applicable
