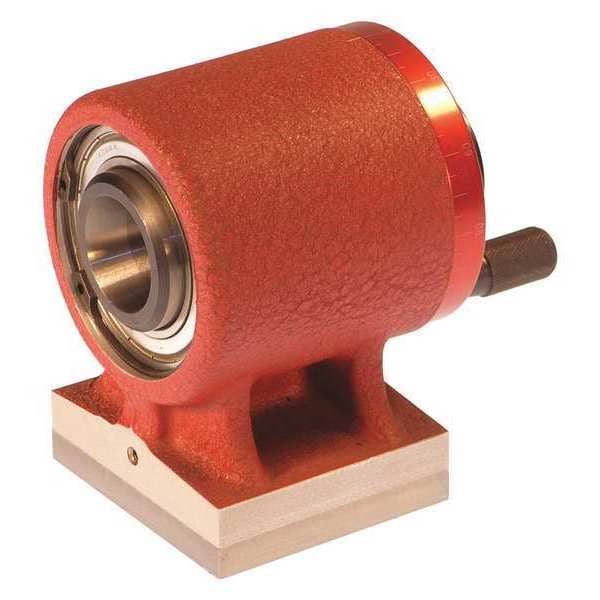

Spin Index Fixture, 5-9/16inH, 6-13/32inL
Mfr # CM-5C
Zoro # G2436211
product price: $2,164.99
/ea
Free Shipping & Returns
Key Features
Collet Capacity
All 5C Collets
Through Hole Dia.
1-1/4"
Height to Spindle Centerline
3-5/8"
Overall Length
6.41 in
Overall Width
4.41 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CM-5C
Zoro #
G2436211
UPC #
662619001146
Country of Origin
United States
Dimensions
Through Hole Dia.
1-1/4"
Height to Spindle Centerline
3-5/8"
Overall Length
6.41 in
Overall Width
4.41 in
Base Length
3 13/32 in
Base Width
3 3/4 in
Overall Height
5.563 in
Through Hole Diameter
1 1/4 in
Compatible Collet Size - Maximum
1.125 in
Compatible Collet Size - Minimum
0.063 in
Centerline Height - Maximum
3 5/8 in
Details
Item
Collet Master Index Fixture
Collet Capacity
All 5C Collets
Hard Stop Spacing
7-1/2 Degrees
Number of Indexing Positions
48
Parallelism
0.0002 in
Includes
Drawbar, Wooden Case
Squareness
0.0002 in
Max. Spindle Runout
0.00010"
Features
Maximum Spindle Runout: 0.0001 in, Spindle Rides in Two Sealed and Pre-Loaded Ball Bearings
Number of Positions
48
Compatible Collet Series
5C
T.I.R. Tolerance
0.0001 in
Index Increments
7 1/2 Degrees
Description
Spin Index Fixture, Collet Capacity All 5C Collets, Through Hole Dia. 1-1/4 In., Height to Spindle Centerline 3-5/8 In., Overall Length 6-13/32 In., Overall Width 4-13/32 In., Base Length 3-13/32 In., Base Width 3-3/4 In., Overall Height 5-9/16 In., Number of Indexing Positions 48
